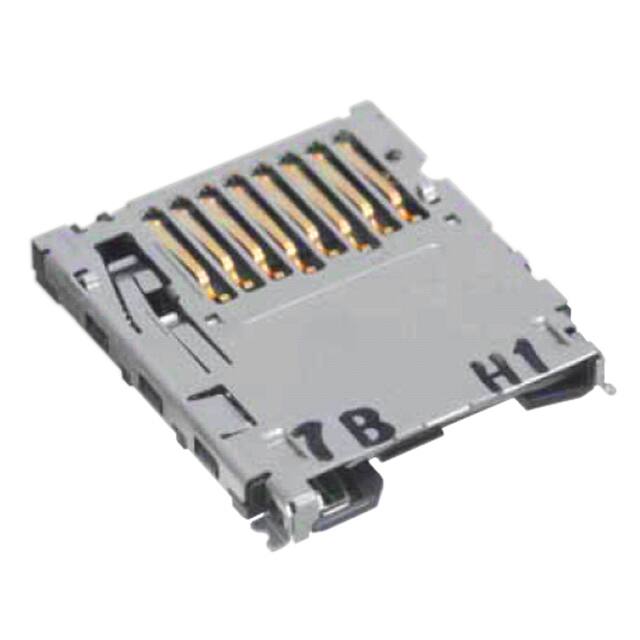

Hirose Electric Co Ltd DM3BT-DSF-PEJS
Hirose Electric Co Ltd DM3BT-DSF-PEJS thumbnail
Hirose Electric Co Ltd DM3BT-DSF-PEJS thumbnail
FREE SAMPLE

Hirose Electric Co Ltd DM3BT-DSF-PEJS

Hirose Electric Co Ltd

Manufacturer No:

DM3BT-DSF-PEJS

Manufacturer:

Hirose Electric Co Ltd

Cybertant No:

-

Package:

-

Datasheet:

Datasheet

ECAD Model:

-

Description:

CONN MICRO SD CARD PUSH-PUSH R/A

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 118800

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Hirose Electric Co Ltd DM3BT-DSF-PEJS information

Specifications
Documents & Media
Product Comparison
Related Products
Hirose Electric Co Ltd DM3BT-DSF-PEJS technical specifications, attributes, parameters and parts with similar specifications to Hirose Electric Co Ltd DM3BT-DSF-PEJS.
ParameterValue
Factory Lead Time 12 Weeks
Contact Plating -
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Package / Case -
Mounting Feature Reverse - Bottom
Number of Pins -
Housing Material Polymer
Board Mounting Option -
Manufacturer Package Identifier DM3BT-DSF-PEJS
Contact Materials Copper
Insulation Materials -
Memory Types FLASH
Operating Temperature (Max.) -
Operating Temperature (Min.) -
Voltage Rated 125V
Packaging Tape & Reel (TR)
Published 2008
Series DM3
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Connector and Ejector
Number of Positions 10 (8 + 2)
Max Operating Temperature 85u00b0C
Min Operating Temperature -25u00b0C
Number of Rows 1
Gender Female
Additional Feature -
HTS Code -
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature -
Mixed Contacts -
Option GENERAL PURPOSE
Pitch 1.1mm
Total Number of Contacts -
Orientation Right Angle
Terminal Pitch -
Depth 1.83mm
Reach Compliance Code -
Current Rating 500mA
Number of Conductors ONE
Reference Standard UL
Contact Finish Gold
Voltage - Rated AC 125V
Reliability COMMERCIAL
Body Length or Diameter -
Number Of PCB Rows 1
Number of Contacts 8
PCB Contact Pattern RECTANGULAR
Body Breadth -
Contact Gender -
Body Depth -
Rated Current (Signal) 0.5A
Contact Style COMPRESSION
Contact Resistance 100mOhm
Card Type Secure Digital - microSDu2122
Insulation Resistance 1GOhm
Mating Contact Pitch -
Body/Shell Style SOCKET
Number of Circuits -
Max Voltage Rating (AC) 125V
Max Current Rating 500mA
Dielectric Withstanding Voltage 500VAC V
Number of Ports -
Durability -
Max Voltage Rating (DC) -
Contact Pattern RECTANGULAR
Insertion Force-Max -
Withdrawl Force-Min -
Insulator Color BLACK
Halogen Free -
Insertion, Removal Method Push In, Push Out
Features Switch
Height 2.38mm
Length 13.85mm
Width 16.05mm
Contact Finish Thickness -
Plating Thickness -
Height Above Board 0.072 1.83mm
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
