Home / All Products / Memory Card Sockets / Hirose Electric Co Ltd DM3AT-SF-PEJM5(11)

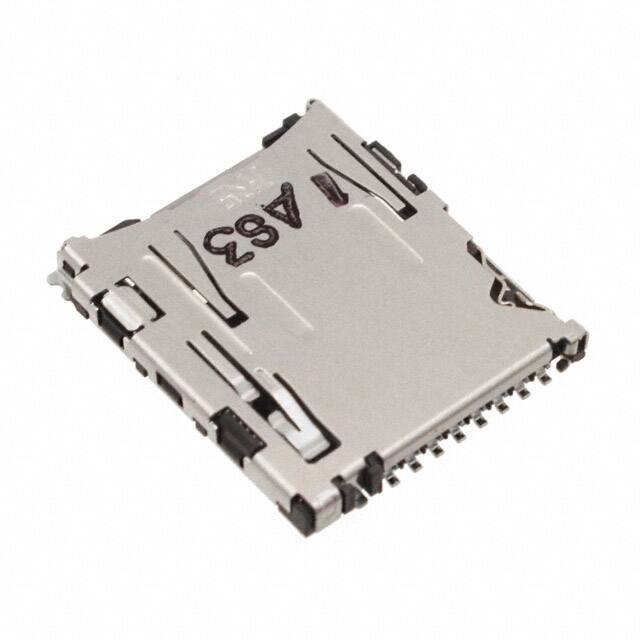

Hirose Electric Co Ltd DM3AT-SF-PEJM5(11)
Hirose Electric Co Ltd DM3AT-SF-PEJM5(11) thumbnail
Hirose Electric Co Ltd DM3AT-SF-PEJM5(11) thumbnail
FREE SAMPLE

Hirose Electric Co Ltd DM3AT-SF-PEJM5(11)

Hirose Electric Co Ltd

Manufacturer No:

DM3AT-SF-PEJM5(11)

Manufacturer:

Hirose Electric Co Ltd

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

Memory Card Connectors 8P R/A SMT MICRO SD PUSH-PUSH

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 3707

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Hirose Electric Co Ltd DM3AT-SF-PEJM5(11) information

Specifications
Documents & Media
Product Comparison
Related Products
Hirose Electric Co Ltd DM3AT-SF-PEJM5(11) technical specifications, attributes, parameters and parts with similar specifications to Hirose Electric Co Ltd DM3AT-SF-PEJM5(11).
ParameterValue
Factory Lead Time 10 Weeks
Contact Plating Gold
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Package / Case SMD/SMT
Mounting Feature Normal, Standard - Top
Housing Material Stainless Steel
Contact Finish Mating AU
Contact Materials COPPER ALLOY
Voltage Rated 125V
Packaging Reel
Series DM3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Connector and Ejector
Number of Positions 10 (8 + 2)
Max Operating Temperature 85u00b0C
Min Operating Temperature -25u00b0C
Number of Rows 1
Pitch 1.1mm
Orientation Right Angle
Reach Compliance Code unknown
Current Rating 500mA
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 0.545 inch
Number Of PCB Rows 1
Number of Contacts 8
PCB Contact Pattern RECTANGULAR
Body Breadth 0.066 inch
Contact Gender MALE
Body Depth 0.659 inch
Rated Current (Signal) 0.5A
Card Type Secure Digital - microSDu2122
Insulation Resistance 1GOhm
Dielectric Withstanding Voltage 500VAC V
Contact Pattern RECTANGULAR
Insulator Color BLACK
Insertion, Removal Method Push In, Push Out
Features Switch
Height 1.83mm
Height Above Board 0.066 1.68mm
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0

No documents or media available for this product.

The three parts on the right have similar specifications to Hirose Electric Co Ltd DM3AT-SF-PEJM5(11).

No similar products have been configured yet.
