Home / All Products / D-Sub Connector Housings / Amphenol ICC (FCI) DC8W8PA00LF

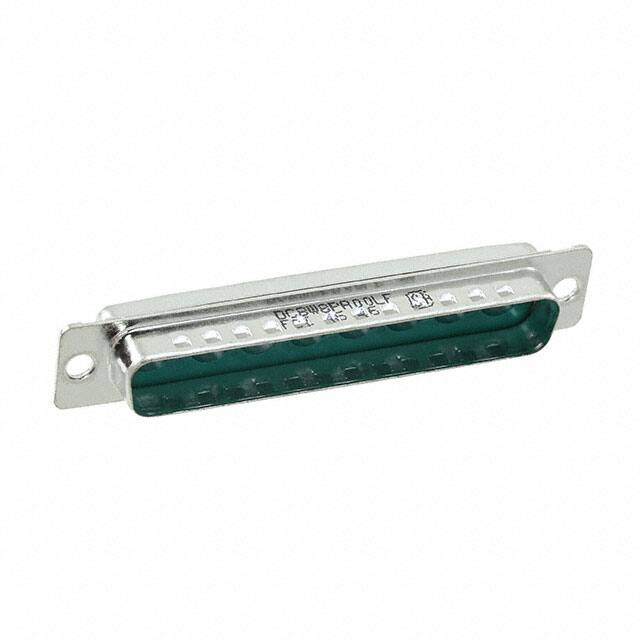

Amphenol ICC (FCI) DC8W8PA00LF

Amphenol ICC (FCI)

Manufacturer No:

DC8W8PA00LF

Manufacturer:

Amphenol ICC (FCI)

Cybertant No:

Package:

Datasheet:

ECAD Model:

Description:

CONN D-SUB HOUSING PLUG 8POS

Quantity:

Unit Price: -

Ext Price: -

Delivery:

Payment:

In Stock : 180

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry

Package

Shipping Information

Shopping Manual

Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport

Step1：Prepare product
Step2：Vacuum packaging
Step3：Anti-static bag
Step4：Individual package
Step5：Packaging box
Step6：Barcode shipping label

Cybertant How to Login and Register Online

Cybertant How to Place an Order

Cybertant How to Request for Quote

Cybertant How to Use Manufacturers Page

Cybertant How to Use My Account

Amphenol ICC (FCI) DC8W8PA00LF information

Specifications

Documents & Media

Product Comparison

Related Products

Amphenol ICC (FCI) DC8W8PA00LF technical specifications, attributes, parameters and parts with similar specifications to Amphenol ICC (FCI) DC8W8PA00LF.

Parameter	Value
Factory Lead Time	11 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Steel
Dielectric Material	Thermoplastic
Body Material	Metal, Steel
Shell Material, Finish	Steel, Tin Plated
Contact Materials	Bronze
Voltage Rated	300V
Operating Temperature	-55u00b0C~125u00b0C
Packaging	Tray
Series	DW
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Through Hole
Connector Type	Plug for Male Contacts
Resistance	7.3mOhm
Number of Positions	8 (Power)
Number of Rows	1
Gender	Male
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Power
Mixed Contacts	YES
Option	GENERAL PURPOSE
Orientation	Straight
Depth	11.3mm
Current Rating	7.5A
Reference Standard	UL
Reliability	COMMERCIAL
Number of Contacts	8
UL Flammability Code	94V-0
Empty Shell	YES
Working Voltage	500V
Contact Resistance	7.3mOhm
Note	Contacts Not Included
Flange Feature	Housing/Shell (Unthreaded)
Connector Style	D-Sub, Combo
Body Plating	Nickel
Shell Size, Connector Layout	4 DC C - 8W8
Features	Grounding Indents
Length	68.94mm
Width	12.55mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free
