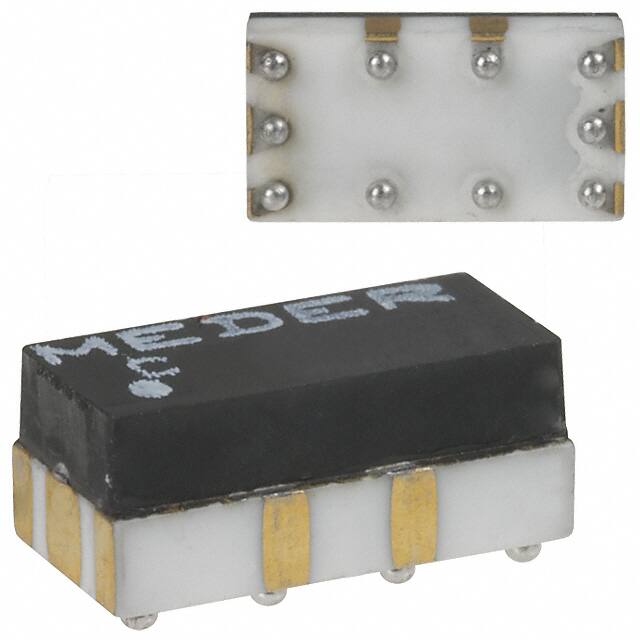

Standex-Meder Electronics CRF05-1AS
Standex-Meder Electronics CRF05-1AS thumbnail
Standex-Meder Electronics CRF05-1AS thumbnail
FREE SAMPLE

Standex-Meder Electronics CRF05-1AS

Standex-Meder Electronics

Manufacturer No:

CRF05-1AS

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

RELAY RF SPST 500MA 5V

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 4084

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Standex-Meder Electronics CRF05-1AS information

Specifications
Documents & Media
Product Comparison
Related Products
Standex-Meder Electronics CRF05-1AS technical specifications, attributes, parameters and parts with similar specifications to Standex-Meder Electronics CRF05-1AS.
ParameterValue
Factory Lead Time 12 Weeks
Mount Surface Mount
Mounting Type Surface Mount
Weight 370mg
CoilResistance 150Ohm
Operating Frequency (Max) 7000MHz
Operating Temperature -40u00b0C~125u00b0C
Packaging Tape & Reel (TR)
Published 2009
Series CRF
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 10
ECCN Code EAR99
Terminal Finish GOLD
HTS Code 8536.49.00.50
Termination Style BGA
Physical Dimension 8.6mm x 4.4mm x 3.4mm
Contact Resistance 200mOhm
Contact Current(DC)-Max 0.5A
Contact Voltage(DC)-Max 170V
Throw Configuration SPST
Contact Form SPST-NO (1 Form A)
Relay Type RF
Contact Current(AC)-Max 0.5A
Contact (AC) Max Rating R Load .5A@170VAC
Operate Time 0.1ms
Coil Voltage 5VDC
Coil Type Non Latching
Switching Voltage 170VAC 170VDC -Max
Coil Current 33.3mA
Release Time 0.02ms
Contact (DC) Max Rating R Load .5A@170VDC
Must Operate Voltage 3.75VDC
Coil Power 167mW
Must Release Voltage 0.75VDC
Contact Voltage(AC)-Max 170V
Contact/Output Supply Type AC/DC
Relay Action MOMENTARY
Coil Voltage (DC) 5V
Coil/Input Supply Type DC
Switching Current 500mA
Height 3.4mm
Length 8.6mm
Width 4.4mm
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Contains Lead

No documents or media available for this product.

The three parts on the right have similar specifications to Standex-Meder Electronics CRF05-1AS.

No similar products have been configured yet.
