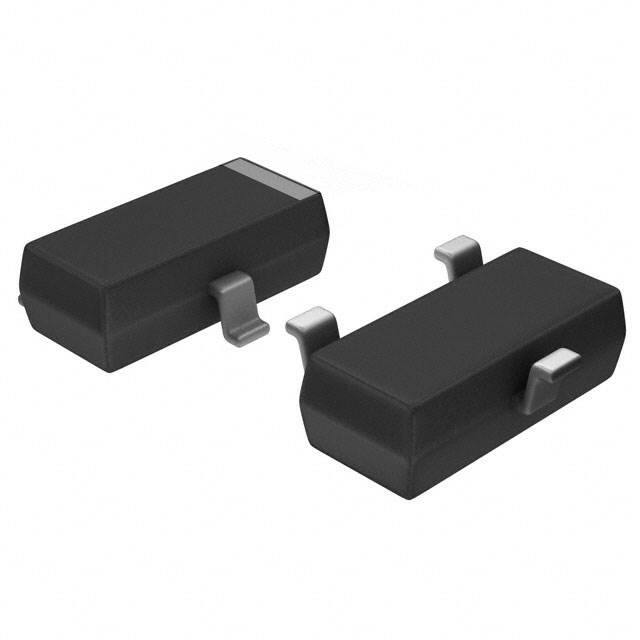

ON Semiconductor BSS138L

ON Semiconductor

Manufacturer No:

BSS138L

Manufacturer:

ON Semiconductor

Cybertant No:

Package:

Datasheet:

ECAD Model:

Description:

MOSFET N-CH 50V 0.2A SOT-23

Quantity:

Unit Price: -

Ext Price: -

Delivery:

Payment:

In Stock : 3

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry

Package

Shipping Information

Shopping Manual

Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport

Step1：Prepare product
Step2：Vacuum packaging
Step3：Anti-static bag
Step4：Individual package
Step5：Packaging box
Step6：Barcode shipping label

Cybertant How to Login and Register Online

Cybertant How to Place an Order

Cybertant How to Request for Quote

Cybertant How to Use Manufacturers Page

Cybertant How to Use My Account

ON Semiconductor BSS138L information

Specifications

Documents & Media

Product Comparison

Related Products

ON Semiconductor BSS138L technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor BSS138L.

Parameter	Value
Factory Lead Time	8 Weeks
Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Number of Pins	3
Weight	30mg
Transistor Element Material	SILICON
Current - Continuous Drain (Id) @ 25u2103	200mA Ta
Drive Voltage (Max Rds On, Min Rds On)	2.75V 5V
Number of Elements	1
Power Dissipation (Max)	350mW Ta
Turn Off Delay Time	20 ns
Operating Temperature	-55u00b0C~150u00b0C TJ
Packaging	Tape & Reel (TR)
Published	2012
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Time@Peak Reflow Temperature-Max (s)	40
Pin Count	3
Qualification Status	Not Qualified
Number of Channels	1
Element Configuration	Single
Operating Mode	ENHANCEMENT MODE
Power Dissipation	225mW
Turn On Delay Time	20 ns
FET Type	N-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	3.5 u03a9 @ 200mA, 5V
Vgs(th) (Max) @ Id	1.5V @ 1mA
Input Capacitance (Ciss) (Max) @ Vds	50pF @ 25V
Gate Charge (Qg) (Max) @ Vgs	2.4nC @ 10V
Rise Time	1.8ns
Vgs (Max)	u00b120V
Fall Time (Typ)	5.1 ns
Continuous Drain Current (ID)	200mA
Threshold Voltage	1.25V
Gate to Source Voltage (Vgs)	20V
Drain Current-Max (Abs) (ID)	0.2A
Drain to Source Breakdown Voltage	50V
Max Junction Temperature (Tj)	150u00b0C
Feedback Cap-Max (Crss)	5 pF
Height	1.11mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
