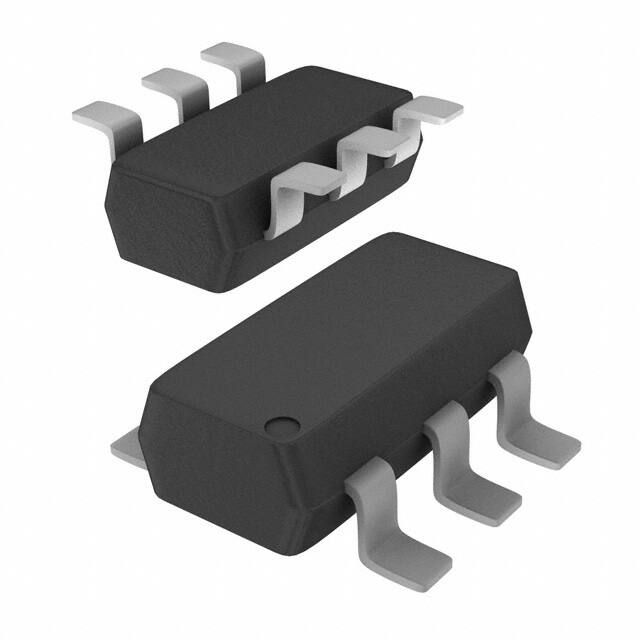

Infineon Technologies BSL308PEH6327XTSA1
Infineon Technologies BSL308PEH6327XTSA1 thumbnail
Infineon Technologies BSL308PEH6327XTSA1 thumbnail
FREE SAMPLE

Infineon Technologies BSL308PEH6327XTSA1

Infineon Technologies

Manufacturer No:

BSL308PEH6327XTSA1

Manufacturer:

Infineon Technologies

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

MOSFET 2P-CH 30V 2A 6TSOP

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 0

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Infineon Technologies BSL308PEH6327XTSA1 information

Specifications
Documents & Media
Product Comparison
Related Products
Infineon Technologies BSL308PEH6327XTSA1 technical specifications, attributes, parameters and parts with similar specifications to Infineon Technologies BSL308PEH6327XTSA1.
ParameterValue
Factory Lead Time 10 Weeks
Mount Surface Mount
Mounting Type Surface Mount
Package / Case SOT-23-6 Thin, TSOT-23-6
Number of Pins 6
Transistor Element Material SILICON
Number of Elements 2
Turn Off Delay Time 15.3 ns
Operating Temperature -55u00b0C~150u00b0C TJ
Packaging Tape & Reel (TR)
Published 2013
Series Automotive, AEC-Q101, OptiMOSu2122
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
Max Power Dissipation 500mW
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Configuration SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE
Operating Mode ENHANCEMENT MODE
Turn On Delay Time 5.6 ns
FET Type 2 P-Channel (Dual)
Rds On (Max) @ Id, Vgs 80m u03a9 @ 2A, 10V
Vgs(th) (Max) @ Id 1V @ 11u03bcA
Halogen Free Halogen Free
Input Capacitance (Ciss) (Max) @ Vds 500pF @ 15V
Gate Charge (Qg) (Max) @ Vgs 5nC @ 10V
Rise Time 7.7ns
Drain to Source Voltage (Vdss) 30V
Fall Time (Typ) 2.8 ns
Continuous Drain Current (ID) 2A
Gate to Source Voltage (Vgs) 20V
Max Dual Supply Voltage -30V
Drain Current-Max (Abs) (ID) 2A
Drain-source On Resistance-Max 0.08Ohm
FET Technology METAL-OXIDE SEMICONDUCTOR
FET Feature Logic Level Gate, 4.5V Drive
Feedback Cap-Max (Crss) 18 pF
Height 1mm
Length 2.9mm
Width 1.6mm
RoHS Status ROHS3 Compliant
Lead Free Lead Free
