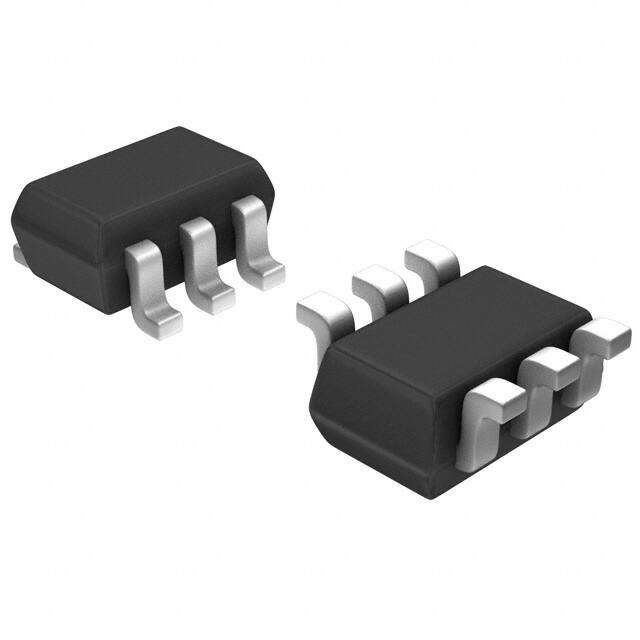

Infineon Technologies BSD223PH6327XTSA1
Infineon Technologies BSD223PH6327XTSA1 thumbnail
Infineon Technologies BSD223PH6327XTSA1 thumbnail
FREE SAMPLE

Infineon Technologies BSD223PH6327XTSA1

Infineon Technologies

Manufacturer No:

BSD223PH6327XTSA1

Manufacturer:

Infineon Technologies

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

MOSFET 2P-CH 20V 0.39A SOT363

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 3770

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Infineon Technologies BSD223PH6327XTSA1 information

Specifications
Documents & Media
Product Comparison
Related Products
Infineon Technologies BSD223PH6327XTSA1 technical specifications, attributes, parameters and parts with similar specifications to Infineon Technologies BSD223PH6327XTSA1.
ParameterValue
Factory Lead Time 10 Weeks
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-VSSOP, SC-88, SOT-363
Number of Pins 6
Transistor Element Material SILICON
Number of Elements 2
Turn Off Delay Time 5.1 ns
Operating Temperature -55u00b0C~150u00b0C TJ
Packaging Tape & Reel (TR)
Published 2002
Series OptiMOSu2122
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
ECCN Code EAR99
Additional Feature AVALANCHE RATED
HTS Code 8541.21.00.95
Voltage - Rated DC -20V
Max Power Dissipation 250mW
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Current Rating -350mA
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number BSD223
Reference Standard AEC-Q101
Configuration SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE
Operating Mode ENHANCEMENT MODE
Turn On Delay Time 3.8 ns
FET Type 2 P-Channel (Dual)
Rds On (Max) @ Id, Vgs 1.2 u03a9 @ 390mA, 4.5V
Vgs(th) (Max) @ Id 1.2V @ 1.5u03bcA
Halogen Free Halogen Free
Input Capacitance (Ciss) (Max) @ Vds 56pF @ 15V
Gate Charge (Qg) (Max) @ Vgs 0.62nC @ 4.5V
Rise Time 5ns
Drain to Source Voltage (Vdss) 20V
Continuous Drain Current (ID) 390mA
Gate to Source Voltage (Vgs) 12V
Max Dual Supply Voltage -20V
Drain Current-Max (Abs) (ID) 0.39A
FET Technology METAL-OXIDE SEMICONDUCTOR
FET Feature Logic Level Gate
Feedback Cap-Max (Crss) 22 pF
Height 800u03bcm
Length 2mm
Width 1.25mm
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
