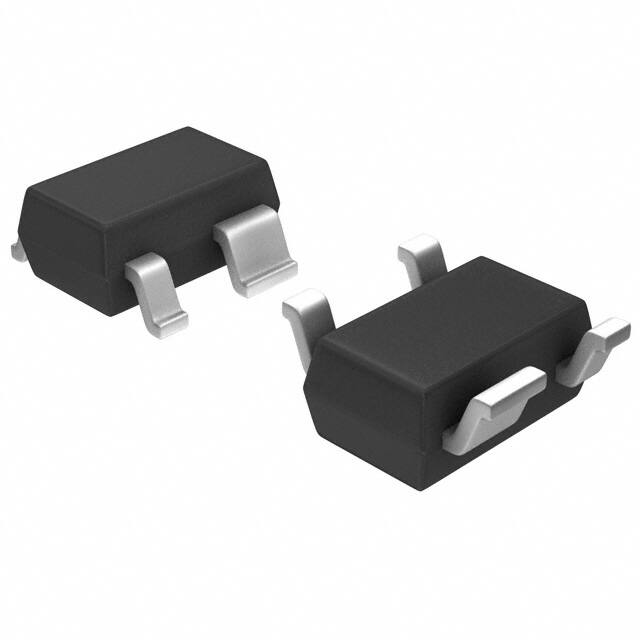

Infineon Technologies BFP420H6801XTSA1
Infineon Technologies BFP420H6801XTSA1 thumbnail
Infineon Technologies BFP420H6801XTSA1 thumbnail
FREE SAMPLE

Infineon Technologies BFP420H6801XTSA1

Infineon Technologies

Manufacturer No:

BFP420H6801XTSA1

Manufacturer:

Infineon Technologies

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

TRANS RF NPN 25GHZ 4.5V SOT343

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 25

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Infineon Technologies BFP420H6801XTSA1 information

Specifications
Documents & Media
Product Comparison
Related Products
Infineon Technologies BFP420H6801XTSA1 technical specifications, attributes, parameters and parts with similar specifications to Infineon Technologies BFP420H6801XTSA1.
ParameterValue
Factory Lead Time 4 Weeks
Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount
Package / Case SC-82A, SOT-343
Number of Pins 4
Transistor Element Material SILICON
Collector-Emitter Breakdown Voltage 5V
Current-Collector (Ic) (Max) 35mA
Number of Elements 1
Operating Temperature 150u00b0C TJ
Packaging Tape & Reel (TR)
Published 2007
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
ECCN Code EAR99
Additional Feature HIGH RELIABILITY, LOW NOISE
Max Power Dissipation 160mW
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Frequency 25GHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number BFP420
Configuration SINGLE
Power Dissipation 160mW
Transistor Application AMPLIFIER
Polarity/Channel Type NPN
Transistor Type NPN
Collector Emitter Voltage (VCEO) 4.5V
Max Collector Current 35mA
DC Current Gain (hFE) (Min) @ Ic, Vce 60 @ 20mA 4V
Gain 21dB
Transition Frequency 25000MHz
Collector Base Voltage (VCBO) 15V
Emitter Base Voltage (VEBO) 1.5V
Collector-Base Capacitance-Max 0.3pF
Noise Figure (dB Typ @ f) 1.1dB @ 1.8GHz
RoHS Status ROHS3 Compliant
