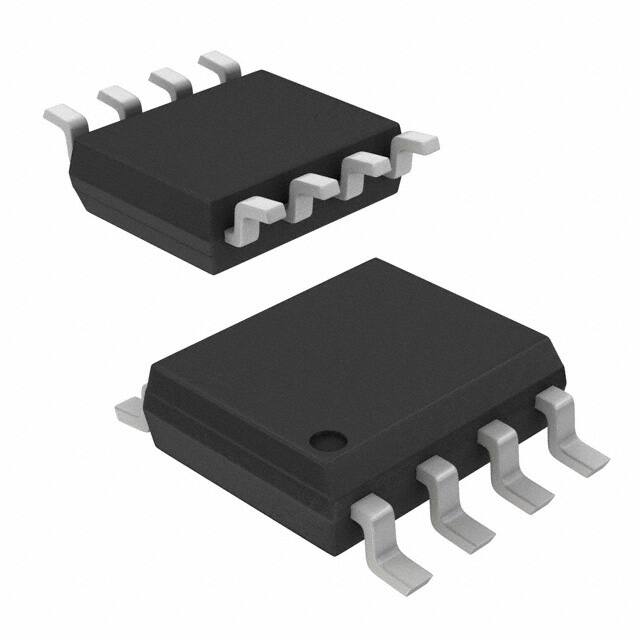

Infineon Technologies AUIPS7091GTR
Infineon Technologies AUIPS7091GTR thumbnail
Infineon Technologies AUIPS7091GTR thumbnail
FREE SAMPLE

Infineon Technologies AUIPS7091GTR

Infineon Technologies

Manufacturer No:

AUIPS7091GTR

Manufacturer:

Infineon Technologies

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

IC HIGH SIDE SWITCH IPS 8SOIC

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 0

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Infineon Technologies AUIPS7091GTR information

Specifications
Documents & Media
Product Comparison
Related Products
Infineon Technologies AUIPS7091GTR technical specifications, attributes, parameters and parts with similar specifications to Infineon Technologies AUIPS7091GTR.
ParameterValue
Factory Lead Time 18 Weeks
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154, 3.90mm Width)
Number of Pins 8
Weight 506.605978mg
Turn Off Delay Time 20 u03bcs
Usage Level Automotive grade
Operating Temperature -40u00b0C~150u00b0C TJ
Packaging Tape & Reel (TR)
Series Automotive, AEC-Q100
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 8
ECCN Code EAR99
Resistance 80mOhm
Max Power Dissipation 1.25W
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 14V
Current Rating 1.5A
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number IPS7091PBF
Number of Outputs 1
Qualification Status Not Qualified
Output Voltage 35.3V
Output Type N-Channel
Max Output Current 2A
Operating Supply Voltage 35V
Interface On/Off
Nominal Supply Current 2.5mA
Output Configuration High Side
Power Dissipation 1.25W
Output Current 1.5A
Voltage - Supply (Vcc/Vdd) Not Required
Max Supply Current 4mA
Input Type Non-Inverting
Turn On Delay Time 12 u03bcs
Switch Type General Purpose
Clamping Voltage 70V
Output Current per Channel 1.5A
Rise Time 7u03bcs
Fall Time (Typ) 6 u03bcs
Nominal Input Voltage 5.5V
Ratio - Input:Output 1:1
Voltage - Load 6V~35V
Driver Number of Bits 1
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature
Turn On Time 35 u03bcs
Output Peak Current Limit-Nom 5A
Rds On (Typ) 80m u03a9
Max Junction Temperature (Tj) 150u00b0C
Turn Off Time 45 u03bcs
Built-in Protections TRANSIENT; OVER CURRENT; THERMAL
Features Auto Restart
Height 1.75mm
Length 4.9mm
Width 3.9mm
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
