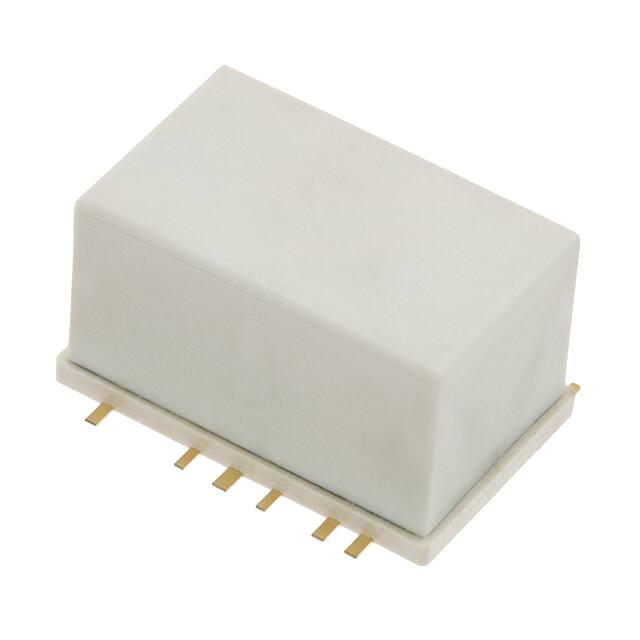

Panasonic Electric Works ARS34Y12
Panasonic Electric Works ARS34Y12 thumbnail
Panasonic Electric Works ARS34Y12 thumbnail
FREE SAMPLE

Panasonic Electric Works ARS34Y12

Panasonic Electric Works

Manufacturer No:

ARS34Y12

Manufacturer:

Panasonic Electric Works

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

RELAY RF SPDT 500MA 12V

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 210

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Panasonic Electric Works ARS34Y12 information

Specifications
Documents & Media
Product Comparison
Related Products
Panasonic Electric Works ARS34Y12 technical specifications, attributes, parameters and parts with similar specifications to Panasonic Electric Works ARS34Y12.
ParameterValue
Factory Lead Time 12 Weeks
Mount Surface Mount
Mounting Type Surface Mount
Number of Pins 14
Weight 2g
CoilResistance 720Ohm
Contact Materials Gold Plating
ElectricalLife 300000 Cycle(s)
Isolation-Max 30 dB
Operating Frequency (Max) 3000MHz
Operating Temperature -40u00b0C~70u00b0C
Packaging Tube
Published 2004
Series ARS
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Termination Gull Wing
ECCN Code EAR99
Terminal Finish Gold (Au)
HTS Code 8536.41.00.20
Termination Style Gull Wing
Body Breadth 8.6 mm
Contact Resistance 100mOhm
Insulation Resistance 100000000Ohm
Contact Current(DC)-Max 0.5A
Max Current Rating 500mA
Impedance 50Ohm
Throw Configuration SPDT
Max Voltage Rating (DC) 30V
Contact Form SPDT (1 Form C)
Relay Type RF
Operate Time 10ms
Coil Voltage 12VDC
Coil Type Non Latching
Switching Voltage 30VDC -Max
Coil Current 16.7mA
Release Time 6ms
Contact (DC) Max Rating R Load .5A@30VDC
Must Operate Voltage 9VDC
Power Consumption 200mW
Must Release Voltage 1.2VDC
Contact/Output Supply Type DC
Relay Action MOMENTARY
Coil Voltage (DC) 12V
Coil/Input Supply Type DC
VSWR 1.4
Insertion Loss (dB) 0.2 dB
Input Power-Max (CW) 1W
Dielectric Strength Between Open Contacts 500 Vrms
Input Switching Control Type Random
Dielectric Strength Between Coil and Contacts 1000 Vrms
Switching Current 500mA
Switching Time 16 ms
Body Height 8mm
RoHS Status RoHS Compliant
