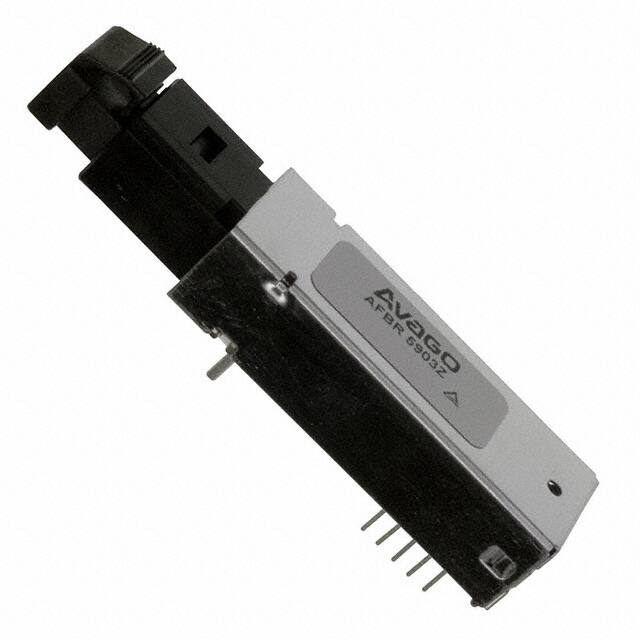

Broadcom Limited AFBR-5903Z
Broadcom Limited AFBR-5903Z thumbnail
Broadcom Limited AFBR-5903Z thumbnail
FREE SAMPLE

Broadcom Limited AFBR-5903Z

Broadcom Limited

Manufacturer No:

AFBR-5903Z

Manufacturer:

Broadcom Limited

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

AVAGO TECHNOLOGIES AFBR-5903Z TRANSCEIVER, 2KM, MT-RJ

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 37

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Broadcom Limited AFBR-5903Z information

Specifications
Documents & Media
Product Comparison
Related Products
Broadcom Limited AFBR-5903Z technical specifications, attributes, parameters and parts with similar specifications to Broadcom Limited AFBR-5903Z.
ParameterValue
Factory Lead Time 16 Weeks
Mount Panel, Through Hole
Mounting Type Through Hole
Package / Case Module
Number of Pins 10
Published 2005
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code 5A991.B.5.A
Connector Type MTRJ
Terminal Finish Matte Tin (Sn)
Max Operating Temperature 70u00b0C
Min Operating Temperature 0u00b0C
Applications General Purpose
Additional Feature OPTICAL OUTPUT POWER FOR THIS FIBER SIZE 62.5/125: 0.026 MW
HTS Code 8517.62.00.50
Supply Voltage 3.3V
Body Length or Diameter 49.56mm
Lead Pitch 1.778mm
Max Output Current 50mA
Operating Supply Voltage 3.3V
Supply Voltage-Max (Vsup) 3.465V
Row Spacing 10.16 mm
Output Current 50mA
Data Rate 100Mbps
Wavelength - Peak 1.3u03bcm
Fiber Type 50/125, MMF
Fiber Optic Device Type TRANSCEIVER
Built-in Feature AMPLIFIER
Operating Wavelength-Nom 1308 nm
Emitter/Detector Type LED, PIN PHOTODIODE
Optical Power Output-Nom 0.009mW
Communication Standard ATM, OC-3C, SDH, SONET, STM-1
Operating Wavelength-Max 1380 nm
Operating Wavelength-Min 1270 nm
Width 13.59mm
Body Height 9.8mm
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
