Home / All Products / Analog Switches & Multiplexers ICs / Analog Devices Inc. ADG712BRZ-REEL7

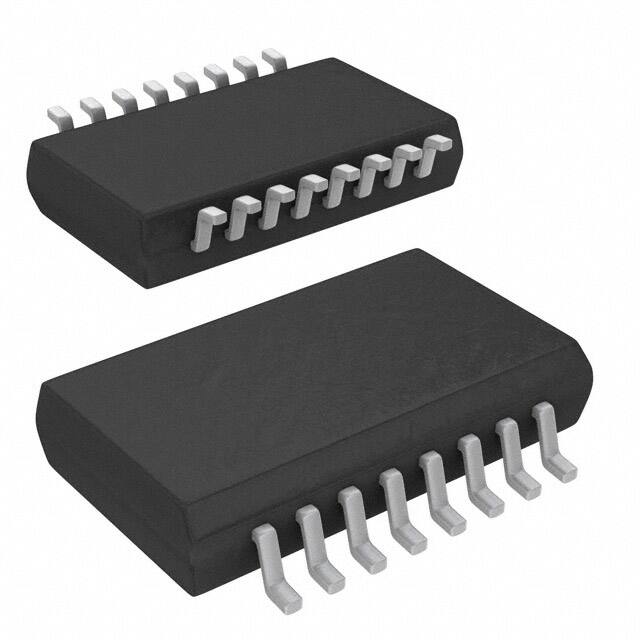

Analog Devices Inc. ADG712BRZ-REEL7

Analog Devices Inc.

Manufacturer No:

ADG712BRZ-REEL7

Manufacturer:

Analog Devices Inc.

Cybertant No:

Package:

Datasheet:

ECAD Model:

Description:

Analog Switch Quad SPST 16-Pin SOIC N T/R

Quantity:

Unit Price: -

Ext Price: -

Delivery:

Payment:

In Stock : 10

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry

Package

Shipping Information

Shopping Manual

Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport

Step1：Prepare product
Step2：Vacuum packaging
Step3：Anti-static bag
Step4：Individual package
Step5：Packaging box
Step6：Barcode shipping label

Cybertant How to Login and Register Online

Cybertant How to Place an Order

Cybertant How to Request for Quote

Cybertant How to Use Manufacturers Page

Cybertant How to Use My Account

Analog Devices Inc. ADG712BRZ-REEL7 information

Specifications

Documents & Media

Product Comparison

Related Products

Analog Devices Inc. ADG712BRZ-REEL7 technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. ADG712BRZ-REEL7.

Parameter	Value
Factory Lead Time	8 Weeks
Lifecycle Status	PRODUCTION (Last Updated: 3 weeks ago)
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.154, 3.90mm Width)
Number of Pins	16
Turn Off Delay Time	6 ns
Operating Temperature	-40u00b0C~85u00b0C TA
Packaging	Tape & Reel (TR)
JESD-609 Code	e3
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	16
ECCN Code	EAR99
Resistance	4Ohm
Additional Feature	CAN ALSO OPERATE WITH 5 V SUPPLY
Max Power Dissipation	5u03bcW
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	4
Supply Voltage	3V
Terminal Pitch	1.27mm
Time@Peak Reflow Temperature-Max (s)	30
Base Part Number	ADG712
Pin Count	16
Qualification Status	Not Qualified
Polarity	Non-Inverting
Power Supplies	3/5V
Number of Channels	4
Interface	Parallel
Max Supply Voltage	5.5V
Min Supply Voltage	1.8V
Operating Supply Current	1nA
Power Dissipation	5u03bcW
Max Supply Current	1u03bcA
Throw Configuration	SPST
Turn On Delay Time	11 ns
Supply Type	Single
Bandwidth	200MHz
On-State Resistance (Max)	4Ohm
High Level Output Current	30mA
Multiplexer/Demultiplexer Circuit	1:1
Off-state Isolation-Nom	58 dB
Current - Leakage (IS(off)) (Max)	100pA
Channel Capacitance (CS(off), CD(off))	10pF 10pF
On-state Resistance Match-Nom	0.1Ohm
Switch Circuit	SPST - NO
Switch Time (Ton, Toff) (Max)	11ns, 6ns (Typ)
Charge Injection	3pC
Switching	BREAK-BEFORE-MAKE
Switch-on Time-Max	20ns
Switch-off Time-Max	12ns
Voltage - Supply, Single (V+)	1.8V~5.5V
Normal Position	NC
Height Seated (Max)	1.75mm
Length	9.9mm
RoHS Status	ROHS3 Compliant
Lead Free	Contains Lead
