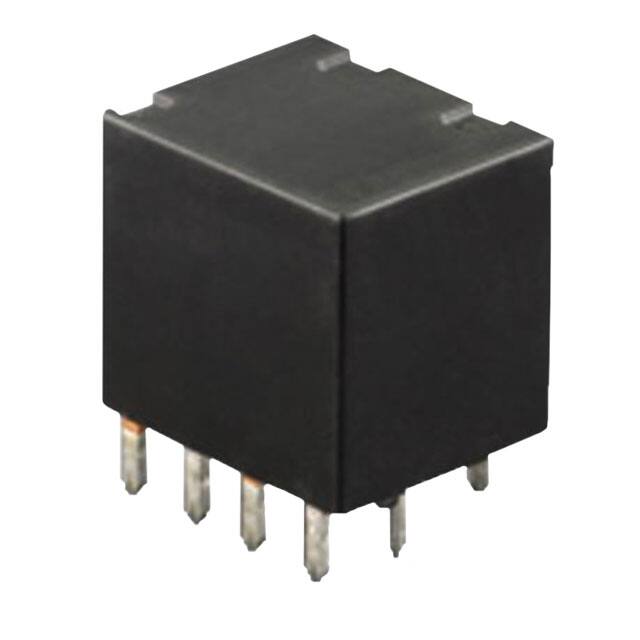

Panasonic Electric Works ACJ5212
Panasonic Electric Works ACJ5212 thumbnail
Panasonic Electric Works ACJ5212 thumbnail
FREE SAMPLE

Panasonic Electric Works ACJ5212

Panasonic Electric Works

Manufacturer No:

ACJ5212

Manufacturer:

Panasonic Electric Works

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

RELAY AUTOMOTIVE SPDTX2 20A 12V

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 10857

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Panasonic Electric Works ACJ5212 information

Specifications
Documents & Media
Product Comparison
Related Products
Panasonic Electric Works ACJ5212 technical specifications, attributes, parameters and parts with similar specifications to Panasonic Electric Works ACJ5212.
ParameterValue
Factory Lead Time 16 Weeks
Mount Through Hole
Mounting Type Through Hole
Number of Pins 10
Weight 6.5g
CoilResistance 225Ohm
Contact Materials Silver Alloy, Cadmium Free
Operating Temperature -40u00b0C~85u00b0C
Packaging Box
Published 2000
Series ACJ
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
HTS Code 8536.41.00.05
Packing Method TUBE
Termination Style PC Pin
Body Length or Diameter 14.4mm
Body Breadth 12.2 mm
Physical Dimension 14.4mm x 12.2mm x 13.5mm
Sealing EPOXY TERMINAL SEALED
Throw Configuration SPDT
Max Voltage Rating (DC) 14V
Contact Form SPDT (1 Form C) x 2
Relay Type POWER/SIGNAL RELAY
Operate Time 10ms
Coil Voltage 12VDC
Coil Type Non Latching
Switching Voltage 14VDC - Nom
Coil Current 53.3mA
Must Operate Voltage 7.2VDC
Contact Rating (Current) 20A
Coil Power 640mW
Must Release Voltage 1VDC
Contact/Output Supply Type DC
Relay Action MOMENTARY
Coil Voltage (DC) 12V
Coil/Input Supply Type DC
Features Sealed - Fully
Body Height 13.5mm
RoHS Status RoHS Compliant

No documents or media available for this product.

The three parts on the right have similar specifications to Panasonic Electric Works ACJ5212.

No similar products have been configured yet.
