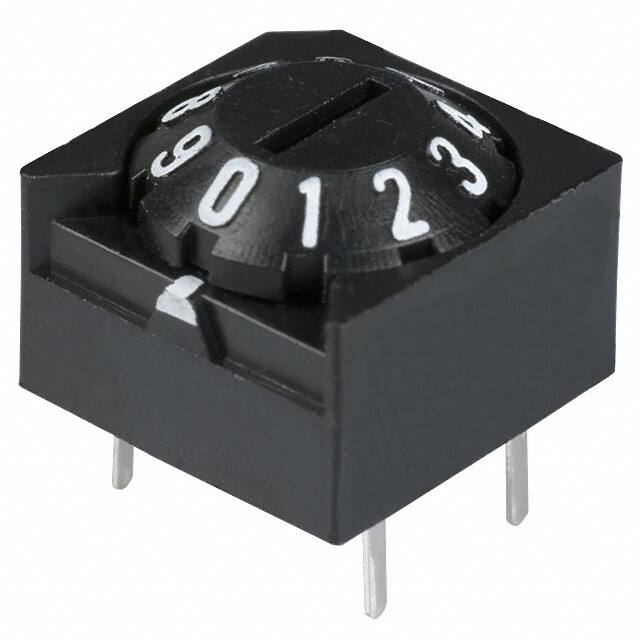

Omron Electronics Inc-EMC Div A6A-10C
Omron Electronics Inc-EMC Div A6A-10C thumbnail
Omron Electronics Inc-EMC Div A6A-10C thumbnail
FREE SAMPLE

Omron Electronics Inc-EMC Div A6A-10C

Omron Electronics Inc-EMC Div

Manufacturer No:

A6A-10C

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

Switch DIP SP10T 10 Dial 0.1A 28VDC PC Pins 10000Cycles 2.54mm Thru-Hole Box

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 0

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Omron Electronics Inc-EMC Div A6A-10C information

Specifications
Documents & Media
Product Comparison
Related Products
Omron Electronics Inc-EMC Div A6A-10C technical specifications, attributes, parameters and parts with similar specifications to Omron Electronics Inc-EMC Div A6A-10C.
ParameterValue
Factory Lead Time 10 Weeks
Contact Plating Gold, Silver
Mount Through Hole
Mounting Type Through Hole
Package / Case DIP
Weight 800mg
Terminal Material BERYLLIUM COPPER
Contact Materials Bronze
ElectricalLife 2,000 Steps
Insulation Materials POLYBUTYLENE TEREPHTHALATE
Voltage Rated 28VDC
Operating Temperature -10u00b0C~70u00b0C
Packaging Bulk
Published 2004
Series A6A
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination PC Pins
ECCN Code EAR99
Number of Positions 10
Additional Feature WITH O-RING
HTS Code 8536.50.90.20
Voltage - Rated DC 28V
Pitch 0.100 2.54mm Full
Orientation Straight
Terminal Pitch 2.54mm
Current Rating 100mA
Termination Style PC Pin
Actuator Type Rotary for Tool
Circuit BCD Complement
Contact Resistance 200mOhm
Insulation Resistance 10MOhm
Contact Current(DC)-Max 0.1A
Max Current Rating 100mA
Dielectric Withstanding Voltage 500VAC V
Throw Configuration SP10T
Max Voltage Rating (DC) 28V
Mechanical Life 10,000 Steps
Switch Type ROTARY CODED SWITCH
Contact Current Rating 100mA
Switching Voltage 28V
Index Angle 36 deg
Number of Switch Sections 1
PCB Hole Count 5
Contact Function ON-ON
Switch Action LATCHED
Washable Yes
Actuator Level Raised
Switching Current 100mA
Features IP64 - Dust Tight, Water Resistant
Length 0.393 10.00mm
Body Height 5.9mm
Actuator Length 1.3mm
Height Above Board 0.295 7.50mm
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
