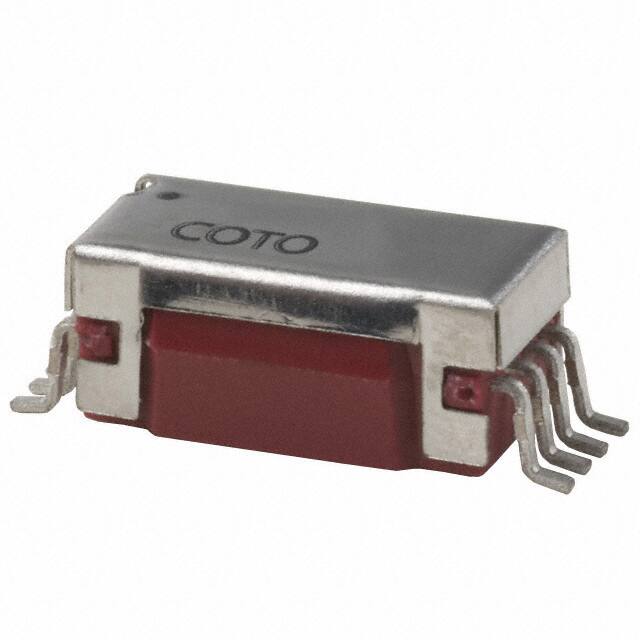

Coto Technology 9852-05-00
Coto Technology 9852-05-00 thumbnail
Coto Technology 9852-05-00 thumbnail
FREE SAMPLE

Coto Technology 9852-05-00

Coto Technology

Manufacturer No:

9852-05-00

Manufacturer:

Coto Technology

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

Relay, Reed SPDT 5V SMD

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 0

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Coto Technology 9852-05-00 information

Specifications
Documents & Media
Product Comparison
Related Products
Coto Technology 9852-05-00 technical specifications, attributes, parameters and parts with similar specifications to Coto Technology 9852-05-00.
ParameterValue
Factory Lead Time 16 Weeks
Mount Surface Mount
Mounting Type Surface Mount
Package / Case SMD/SMT
Number of Pins 8
Coil Voltage AC 5V
CoilResistance 110Ohm
Contact Materials Ruthenium
ElectricalLife 100000000 Cycle(s)
Operating Temperature -20u00b0C~85u00b0C
Packaging Tube
Published 2010
Series 9800
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 8
Termination Gull Wing
ECCN Code EAR99
Terminal Finish Gold (Au)
Additional Feature SHIELDED
Packing Method TR
Termination Style Gull Wing
Body Breadth 4.95 mm
Physical Dimension 10.16mm x 4.95mm x 5.33mm
Contact Resistance 150mOhm
Insulation Resistance 1GOhm
Contact Current(DC)-Max 0.1A
Sealing HERMETICALLY SEALED
Contact Voltage(DC)-Max 30V
Throw Configuration SPDT
Contact Form SPDT (1 Form C)
Rise Time 260u03bcs
Relay Type RF
Contact Current(AC)-Max 0.1A
Contact (AC) Max Rating R Load .1A@30VAC
Operate Time 1ms
Coil Voltage 5VDC
Coil Type Non Latching
Switching Voltage 30VAC 30VDC -Max
Coil Current 45.5mA
Release Time 1 ms
Contact (DC) Max Rating R Load .1A@30VDC
Must Operate Voltage 3.8VDC
Coil Power 225mW
Must Release Voltage 0.4VDC
Contact Voltage(AC)-Max 30V
Contact/Output Supply Type AC/DC
Relay Action MOMENTARY
Coil Voltage (DC) 5V
Coil/Input Supply Type DC
Dielectric Strength Between Open Contacts 200 Vrms
Input Switching Control Type Random
Dielectric Strength Between Coil and Contacts 1000 Vrms
Switching Current 100mA
Features Magnetic Shield
Height 4.57mm
Length 10.2mm
Width 10.16mm
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
