Home / All Products / Coaxial Connectors / Amphenol RF 903-413J-51A

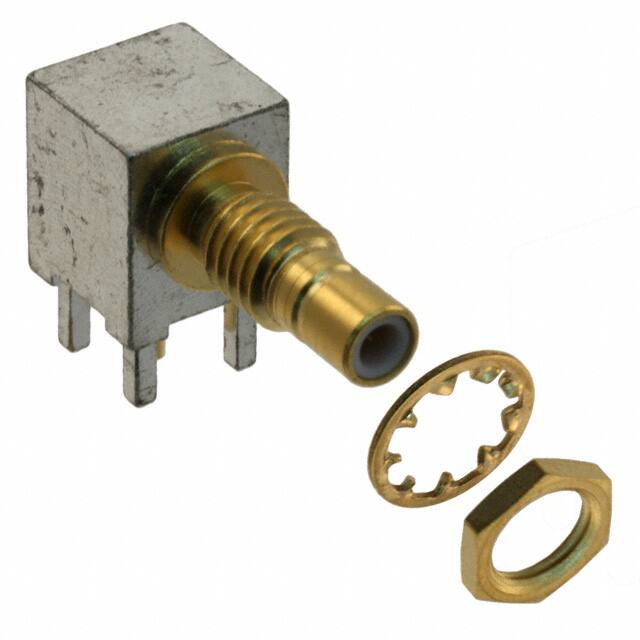

Amphenol RF 903-413J-51A

Amphenol RF

Manufacturer No:

903-413J-51A

Manufacturer:

Amphenol RF

Cybertant No:

Package:

Datasheet:

ECAD Model:

Description:

CONN SMB JACK R/A 50 OHM PCB

Quantity:

Unit Price: -

Ext Price: -

Delivery:

Payment:

In Stock : 268

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry

Package

Shipping Information

Shopping Manual

Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport

Step1：Prepare product
Step2：Vacuum packaging
Step3：Anti-static bag
Step4：Individual package
Step5：Packaging box
Step6：Barcode shipping label

Cybertant How to Login and Register Online

Cybertant How to Place an Order

Cybertant How to Request for Quote

Cybertant How to Use Manufacturers Page

Cybertant How to Use My Account

Amphenol RF 903-413J-51A information

Specifications

Documents & Media

Product Comparison

Related Products

Amphenol RF 903-413J-51A technical specifications, attributes, parameters and parts with similar specifications to Amphenol RF 903-413J-51A.

Parameter	Value
Factory Lead Time	9 Weeks
Mount	Bulkhead, Panel, Through Hole
Mounting Type	Panel Mount, Through Hole, Right Angle
Mounting Feature	Bulkhead - Front Side Nut
Dielectric Material	Polytetrafluoroethylene (PTFE)
Body Material	Brass
Center Contact Plating	Gold
Contact Materials	Brass, Copper
Insulation Materials	POLYTETRAFLUORO ETHYLENE
Voltage Rated	335V
Operating Temperature	-65u00b0C~165u00b0C
Packaging	Bulk
Published	2001
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Jack, Male Pin
Gender	Male
Fastening Type	Snap-On
MIL Conformance	YES
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Option	GENERAL PURPOSE
Total Number of Contacts	1
Orientation	Right Angle
Frequency	4GHz
Reliability	COMMERCIAL
Body Breadth	0.38 inch
Housing Color	Silver
Body Depth	0.797 inch
Polarity	Standard
Contact Style	COAX
Insulation Resistance	1GOhm
Impedance	50Ohm
Connector Style	SMB
Number of Ports	1
Mating Cycles	500
Contact Termination	Solder
Includes	3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Insertion Loss	0.6dB
Body Finish	Tin
VSWR	1.5
Radiation Hardening	No
RoHS Status	RoHS Compliant
