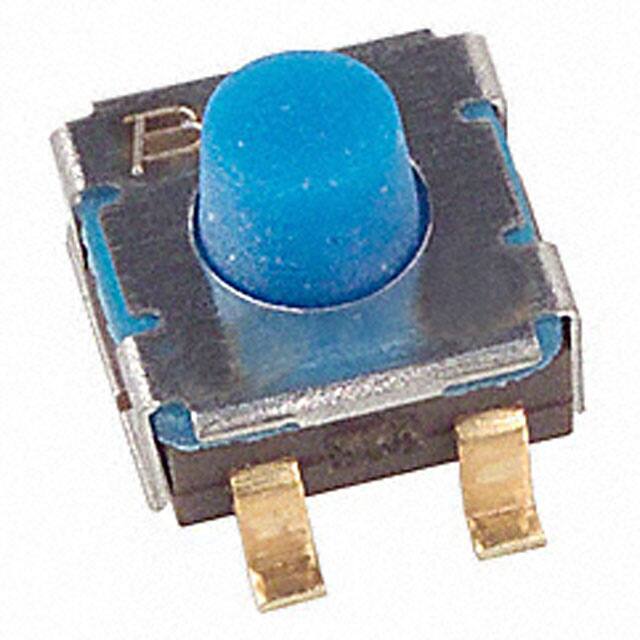

Bourns Inc. 7914G-1-000E
Bourns Inc. 7914G-1-000E thumbnail
Bourns Inc. 7914G-1-000E thumbnail
FREE SAMPLE

Bourns Inc. 7914G-1-000E

Bourns Inc.

Manufacturer No:

7914G-1-000E

Manufacturer:

Bourns Inc.

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

BOURNS - 7914G-1-000E - Tactile Switch, 7914 Series, Top Actuated, Surface Mount, Round Button, 300 gf, 100mA at 16VDC

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 2940

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Bourns Inc. 7914G-1-000E information

Specifications
Documents & Media
Product Comparison
Related Products
Bourns Inc. 7914G-1-000E technical specifications, attributes, parameters and parts with similar specifications to Bourns Inc. 7914G-1-000E.
ParameterValue
Factory Lead Time 7 Weeks
Contact Plating Gold, Silver
Mount Surface Mount
Mounting Type Surface Mount
Housing Material STAINLESS STEEL
Actuator Material Silicon Rubber
Terminal Material PHOSPHOR BRONZE
Contact Materials Gold
Insulation Materials THERMOPLASTIC
Operating Temperature -55u00b0C~125u00b0C
Packaging Tape & Reel (TR)
Published 2007
Series 7914
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Gull Wing
ECCN Code EAR99
Number of Positions 2
Additional Feature CONSULT FACTORY
HTS Code 8536.50.90.31
Voltage - Rated DC 16V
Packing Method TAPE AND REEL
Orientation Straight
Depth 6.2mm
Current Rating 100mA
Base Part Number 7914G
Termination Style Gull Wing
Voltage - Rated AC 16V
Actuator Type Standard
Circuit SPST-NO
Switch Function Off-Mom
Contact Resistance 100mOhm
Insulation Resistance 100000000Ohm
Sealing WATER PROOF
Max Voltage Rating (AC) 16V
Max Current Rating 100mA
Throw Configuration SPST
Illumination Non-Illuminated
Max Voltage Rating (DC) 16V
Mechanical Life 100,000 Cycles
Switch Type KEYPAD SWITCH
Contact Current Rating 1A
Operating Force 300gf
Illumination Type Illuminated, Non-Illuminated
Actuator Orientation Top Actuated
Contact (DC) Max Rating R Load .1A@16VDC
Outline 5.00mm x 5.00mm
Contact Rating @ Voltage 0.1A @ 16VAC/DC
Contact Function N.O.-N.C.
Actuator Height off PCB, Vertical 4.19mm
Number of Switches 1
Length 5mm
Actuator Length 1.65mm
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
