Home / All Products / Magnetic Reed Switches / Littelfuse Inc. 59050-010

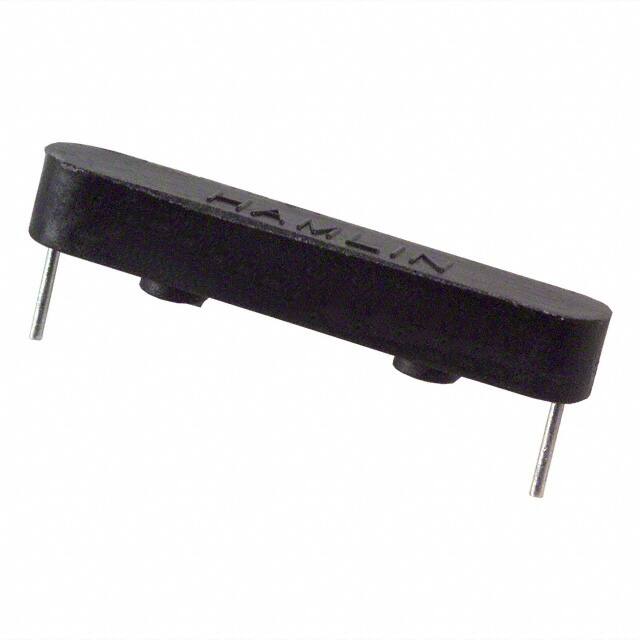

Littelfuse Inc. 59050-010
Littelfuse Inc. 59050-010 thumbnail
Littelfuse Inc. 59050-010 thumbnail
FREE SAMPLE

Littelfuse Inc. 59050-010

Littelfuse Inc.

Manufacturer No:

59050-010

Manufacturer:

Littelfuse Inc.

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

Proximity Sensor Magnetic NO 2-Pin

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 1973

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Littelfuse Inc. 59050-010 information

Specifications
Documents & Media
Product Comparison
Related Products
Littelfuse Inc. 59050-010 technical specifications, attributes, parameters and parts with similar specifications to Littelfuse Inc. 59050-010.
ParameterValue
Factory Lead Time 19 Weeks
Mount PCB, Through Hole
Mounting Type Through Hole
Number of Pins 2
Operating Temperature -40u00b0C~105u00b0C
Packaging Bulk
Published 2001
Series 59050
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Type Molded Body
Capacitance 0.3pF
Power Rating 10W
Voltage - Rated DC 200V
Current Rating 500mA
Termination Style PC Pin
Operating Supply Voltage 200V
Circuit SPST-NO
Nominal Supply Current 500mA
Throw Configuration SPST
Operate Time 1ms
Sensing Method Magnetic
Size - Body 0.900Lx0.170W x 0.180 H 22.86mmx4.32mmx4.57mm
Current - Switching 350mA AC 500mA DC
Operate Range 10 ~ 20AT
Current - Carry 1A DC
Voltage - Switching AC 140V
Switching Capacity 10 W
Height 4.57mm
Length 22.86mm
Width 4.32mm
Length - Overall 0.900 22.86mm
Height Above Board 0.180 4.57mm
Radiation Hardening No
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free

No documents or media available for this product.

The three parts on the right have similar specifications to Littelfuse Inc. 59050-010.

No similar products have been configured yet.
