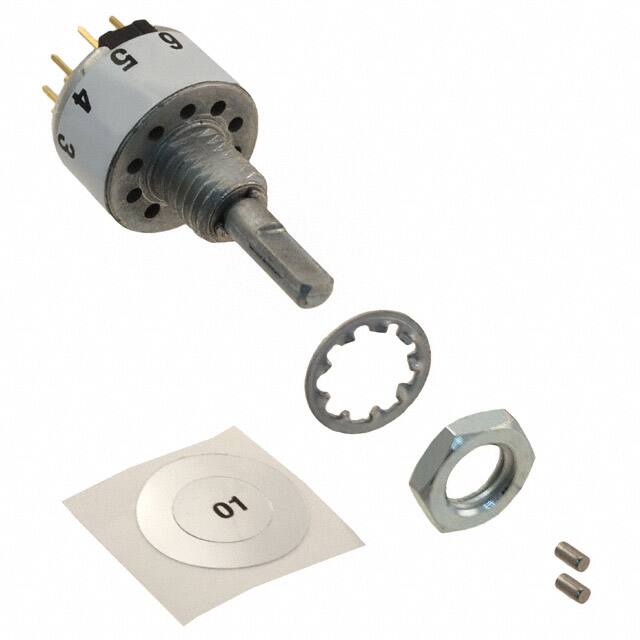

Grayhill, Inc. 56DP36-01-2-AJN

Grayhill, Inc.

Manufacturer No:

56DP36-01-2-AJN

Manufacturer:

Grayhill, Inc.

Cybertant No:

Package:

Datasheet:

ECAD Model:

Description:

GRAYHILL 56DP36-01-2-AJNSWITCH, ROTARY, DP5T, 200mA, 115V

Quantity:

Unit Price: -

Ext Price: -

Delivery:

Payment:

In Stock : 123

Minimum: 1 Multiples: 1
