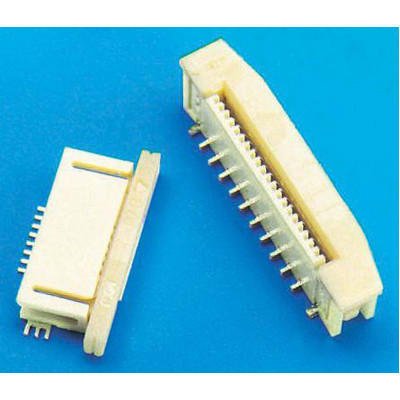

Molex 52559-1853

Molex

Manufacturer No:

52559-1853

Manufacturer:

Molex

Cybertant No:

Package:

Datasheet:

ECAD Model:

Description:

Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Vertical, 3.90mm Height, 18 Circuits, Gold Plating
