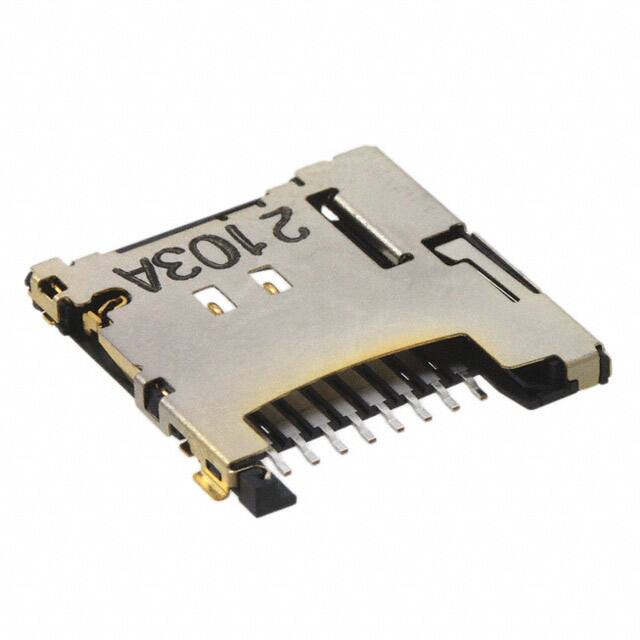

Molex 5031820852
Molex 5031820852 thumbnail
Molex 5031820852 thumbnail
FREE SAMPLE

Molex 5031820852

Molex

Manufacturer No:

5031820852

Manufacturer:

Molex

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

10 (8 2) Position Card Connector Secure Digital - microSD? Surface Mount, Right Angle Gold

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 1533

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Molex 5031820852 information

Specifications
Documents & Media
Product Comparison
Related Products
Molex 5031820852 technical specifications, attributes, parameters and parts with similar specifications to Molex 5031820852.
ParameterValue
Mounting Type Surface Mount, Right Angle
Mounting Feature Normal, Standard - Top
Contact Materials NOT SPECIFIED
Insulation Materials LIQUID CRYSTAL POLYMER (LCP)
Operating Temperature (Max.) 85u00b0C
Operating Temperature (Min.) -25u00b0C
Packaging Tape & Reel (TR)
Published 2013
Series 503182
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Connector and Ejector
Number of Positions 10 (8 + 2)
Number of Rows 1
HTS Code 8536.69.40.40
Total Number of Contacts 8
Terminal Pitch 1.0922mm
Number of Conductors ONE
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Body Length or Diameter 0.588 inch
Number Of PCB Rows 1
PCB Contact Pattern RECTANGULAR
Body Breadth 0.057 inch
Contact Gender MALE
Body Depth 0.589 inch
Rated Current (Signal) 0.5A
Contact Resistance 100mOhm
Card Type Secure Digital - microSDu2122
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.043 inch
Body/Shell Style RECEPTACLE
Dielectric Withstanding Voltage 500VAC V
Number of Ports 1
Contact Pattern RECTANGULAR
Insertion, Removal Method Push In, Push Out
Ejector Side Right
Features Switch
Height Above Board 0.057 1.45mm
RoHS Status ROHS3 Compliant

No documents or media available for this product.
