Home / All Products / IC and Component Sockets / Molex 5031542090

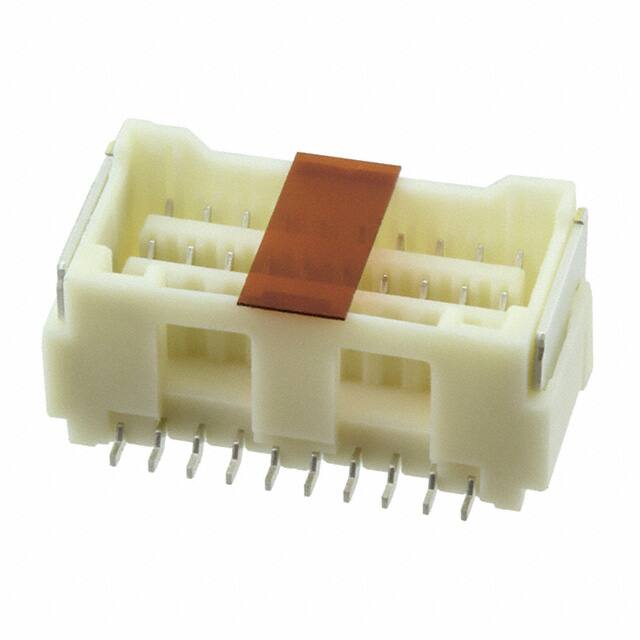

Molex 5031542090

Molex

Manufacturer No:

5031542090

Manufacturer:

Molex

Cybertant No:

Package:

Datasheet:

ECAD Model:

Description:

Headers & Wire Housings 1.5 W/B Dl ST RecAsy 20CktEmbsTpPkgBeige

Quantity:

Unit Price: -

Ext Price: -

Delivery:

Payment:

In Stock : 1742

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry

Package

Shipping Information

Shopping Manual

Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport

Step1：Prepare product
Step2：Vacuum packaging
Step3：Anti-static bag
Step4：Individual package
Step5：Packaging box
Step6：Barcode shipping label

Cybertant How to Login and Register Online

Cybertant How to Place an Order

Cybertant How to Request for Quote

Cybertant How to Use Manufacturers Page

Cybertant How to Use My Account

Molex 5031542090 information

Specifications

Documents & Media

Product Comparison

Related Products

Molex 5031542090 technical specifications, attributes, parameters and parts with similar specifications to Molex 5031542090.

Parameter	Value
Factory Lead Time	10 Weeks
Mounting Type	Surface Mount
Mounting Option 1	LOCKING
Contact Finish Mating	Tin
Contact Materials	Copper Alloy
Insulation Materials	Resin
Operating Temperature	-40u00b0C~105u00b0C
Packaging	Tape & Reel (TR)
Published	2011
Series	CLIK-Mate 503154
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	20
Applications	Automotive, General Purpose, Industrial, Lighting, Medical
Number of Rows	2
Additional Feature	CLIK-MATE, POLARIZED
Fastening Type	Latch Holder
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Forked
Mixed Contacts	NO
Total Number of Contacts	20
Terminal Pitch	1.5mm
Insulation Height	0.344 8.75mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Pitch - Mating	0.059 1.50mm
Insulation Color	Beige
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Body Length or Diameter	0.76 inch
Number Of PCB Rows	2
PCB Contact Pattern	RECTANGULAR
Contact Gender	FEMALE
Body Depth	0.346 inch
Insulation Resistance	500000000Ohm
Mating Contact Pitch	0.059 inch
Features	Pick and Place, Solder Retention
Contact Finish Thickness - Mating	39.4u03bcin 1.00u03bcm
Contact Finish Thickness - Post	39.4u03bcin 1.00u03bcm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
