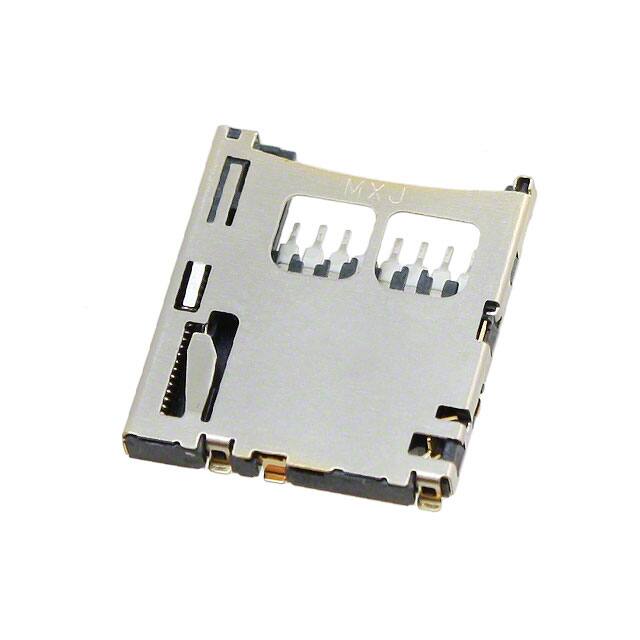

Molex 5025700893
Molex 5025700893 thumbnail
Molex 5025700893 thumbnail
FREE SAMPLE

Molex 5025700893

Molex

Manufacturer No:

5025700893

Manufacturer:

Molex

Cybertant No:

-

Package:

-

Datasheet:

Datasheet

ECAD Model:

-

Description:

CONN MICRO SD CARD PUSH-PUSH R/A

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 12029

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Molex 5025700893 information

Specifications
Documents & Media
Product Comparison
Related Products
Molex 5025700893 technical specifications, attributes, parameters and parts with similar specifications to Molex 5025700893.
ParameterValue
Factory Lead Time 14 Weeks
Contact Material COPPER ALLOY
Contact Plating -
Mount -
Mounting Type Surface Mount, Right Angle
Mounting Feature Normal, Standard - Top
Number of Pins -
Insulation Material LIQUID CRYSTAL POLYMER (LCP)
Housing Material -
Mounting Option 1 -
Board Mounting Option SOLDER HOLDING POSTS
Manufacturer Package Identifier -
Packaging Tape & Reel (TR)
Published 2011
Series 502570
JESD-609 Code -
Feature Switch
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination -
ECCN Code EAR99
Connector Type Connector and Ejector
Number of Positions 10 (8 + 2)
Max Operating Temperature -
Min Operating Temperature -
Number of Rows 1
Gender -
Voltage - Rated -
Additional Feature -
HTS Code 8536.69.40.40
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature -
Mixed Contacts -
Option GENERAL PURPOSE
Pitch -
Total Number of Contacts 8
Orientation -
Terminal Pitch 1.0922mm
Depth -
Reach Compliance Code -
Current Rating -
Number of Conductors ONE
Reference Standard UL
Contact Finish Gold
Voltage - Rated AC -
Reliability COMMERCIAL
Body Length or Diameter 0.543 inch
Number Of PCB Rows 1
Number of Contacts -
PCB Contact Pattern RECTANGULAR
Operating Temperature (Max) 85u00b0C
Body Breadth 0.071 inch
Contact Gender FEMALE
Operating Temperature (Min) -25u00b0C
UL Flammability Code -
Body Depth 0.606 inch
Rated Current (Signal) 0.5A
Contact Style -
Contact Resistance 100mOhm
Card Type Secure Digital - microSDu2122
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.043 inch
Body/Shell Style SOCKET
Number of Circuits -
Max Voltage Rating (AC) -
Max Current Rating -
Dielectric Withstanding Voltage 500VAC V
Number of Ports 1
Memory Type -
Durability 10000 Cycles
Max Voltage Rating (DC) -
Contact Pattern RECTANGULAR
Insertion Force-Max -
Withdrawl Force-Min -
Insulator Color BLACK
Insertion, Removal Method Push In, Push Out
Height -
Length -
Width -
Contact Finish Thickness 20.0u03bcin 0.51u03bcm
Plating Thickness 20u03bcin
Height Above Board 0.071 1.80mm
Radiation Hardening -
REACH SVHC -
RoHS Status ROHS3 Compliant
Flammability Rating -
Lead Free -
