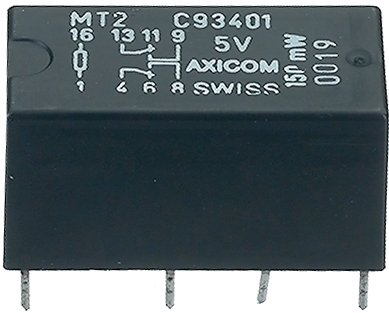

TE Connectivity 4-1462000-1

TE Connectivity

Manufacturer No:

4-1462000-1

Manufacturer:

TE Connectivity

Cybertant No:

Package:

Datasheet:

ECAD Model:

Description:

Electromechanical Relay 24VDC 2.88KOhm 2A DPDT (20.2x10x11)mm THT Signal Relay

Quantity:

Unit Price: -

Ext Price: -

Delivery:

Payment:

In Stock : 20

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry

Package

Shipping Information

Shopping Manual

Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport

Step1：Prepare product
Step2：Vacuum packaging
Step3：Anti-static bag
Step4：Individual package
Step5：Packaging box
Step6：Barcode shipping label

Cybertant How to Login and Register Online

Cybertant How to Place an Order

Cybertant How to Request for Quote

Cybertant How to Use Manufacturers Page

Cybertant How to Use My Account

TE Connectivity 4-1462000-1 information

Specifications

Documents & Media

Product Comparison

Related Products

TE Connectivity 4-1462000-1 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity 4-1462000-1.

Parameter	Value
Factory Lead Time	9 Weeks, 1 Day
Lifecycle Status	Production (Last Updated: 1 day ago)
Contact Plating	Gold
Mount	Through Hole
Package / Case	DIP
Surface Mount	NO
Mounting Feature	THROUGH HOLE-STRAIGHT MOUNT
Number of Pins	8
Weight	5 g
Number of Terminals	8
End Contact Material	Silver Nickel
End Contact Plating	GOLD
Coil nominal voltage	24V DC
Coil Voltage-Nom	24 V
CoilResistance	2.88 ku03a9
Connections	Solder pins
Contact Current	2A
Contact Materials	Gold, Silver
Content	1pc(s)
Dim	(L x W x H) 20.2 x 10 x 11.1 mm
Dropout Volt	2.4VDC
Dropout Volt (Min)	2.4VDC
ElectricalLife	200000 Cycle(s)
Ihs Manufacturer	TE CONNECTIVITY LTD
Insertion Loss-Max	-0.02 dB
Isolation-Max	-31.8 dB
LED Indicator	No
Manufacturer	TE Connectivity
Manufacturer Lifecycle Status	ACTIVE (Last Updated: 1 day ago)
Manufacturer Part Number	4-1462000-1
Manufacturer Series	1462000
Max. pick-up voltage	59.9V DC
Max. switching capacity	60W,62.5VA
Max. temperature	+85u00b0C
Maximum Power Rating	60/62.5 W/VA
Min. pick-up voltage	15.6V DC
Min. temperature	-55u00b0C
Mounting Styles	Through Hole
Nominal current (details)	<br> <Max/> 2A
Nominal voltage (details)	24V DC
Operating Frequency (Max)	900 MHz
Operating Temp Range	-55C to 85C
Operating Temperature-Max	85 u00b0C
Operating Temperature-Min	-55 u00b0C
Package Description	ROHS COMPLIANT
Part Life Cycle Code	Active
Pick-up Voltage (Max)	15.6VDC
Product Depth (mm)	10 mm
Rad Hardened	No
Relay Construction	Non-Latching
Resistance (coil)	2880u2126
Risk Rank	1.34
Rohs Code	Yes
Seal	Unsealed
Switching current (max.)	2A
Switching voltage (max.)	250V AC
Voltage Rating (AC)	250 V
Voltage Rating (DC)	220 V
Voltage Rating (VDC)	220V
Packaging	Box/Tube
Termination	PC Pin
ECCN Code	EAR99
Type	Signal Relay
Max Operating Temperature	85 u00b0C
Min Operating Temperature	-55 u00b0C
Additional Feature	RELEASE TIME TAKEN WITH DIODE
HTS Code	8536.49.00.50
Packing Method	TUBE
Depth	10 mm
Reach Compliance Code	compliant
Current Rating	2 A
Pin Count	8
Reference Standard	UL
Termination Style	PC Pin
Body Length or Diameter	20.2 mm
Number of Contacts	2
Body Breadth	10 mm
Physical Dimension	20.2mm x 10mm x 11mm
Brand Name	Axicom
Contact Resistance	70 mu03a9
Insulation Resistance	1000000000 u03a9
Contact Current(DC)-Max	2 A
Sealing	IP67; RT3
Contact Voltage(DC)-Max	220 V
Max Voltage Rating (AC)	250 V
Termination Type	SOLDER
Max Current Rating	2 A
Throw Configuration	DPDT
Max Voltage Rating (DC)	220 V
Contact Current Rating	2 A
Contact Form	2 Form C
Relay Type	RF RELAY
Contact Current(AC)-Max	2 A
Operate Time	5 ms
Coil Voltage	24VDC
Coil Type	Non-Latching
Coil Current	8.33 mA
Release Time	11 ms
Coil Power	200 mW
Contact Voltage(AC)-Max	250 V
Contact/Output Supply Type	AC/DC
Relay Action	MOMENTARY
Coil Voltage (DC)	24 V
Coil/Input Supply Type	DC
PCB Hole Count	8
Operating Frequency-Min	100 MHz
VSWR	1.03
Dielectric Strength Between Open Contacts	750 Vrms
Input Switching Control Type	Random
Dielectric Strength Between Coil and Contacts	1050 Vrms
Ambient Temperature Range High	85 u00b0C
Switching Current	2 A
Relay Function	DPDT
Contact Arrangement	DPDT
Coil Voltage(DC)-Max	24 V
Contact Configuration	DPDT
Coil Current(DC)-Max	0.008 A
Relay Form	2 FORM C
Coil Operate Voltage(DC)	15.6 V
Coil Release Voltage(DC)	2.4 V
Switching Time	21 ms
Terminal Length	0.0032 inch
Coil Suppression Diode	No
Voltage Rating (VAC)	250V
Product Length (mm)	20.2 mm
Height	10.9 mm
Length	20.2 mm
Width	10 mm
Body Height	11 mm
Product Height (mm)	11 mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Ratings	IP67
