Home / All Products / Potentiometers / Bourns Inc. 3549S-1AA-101A

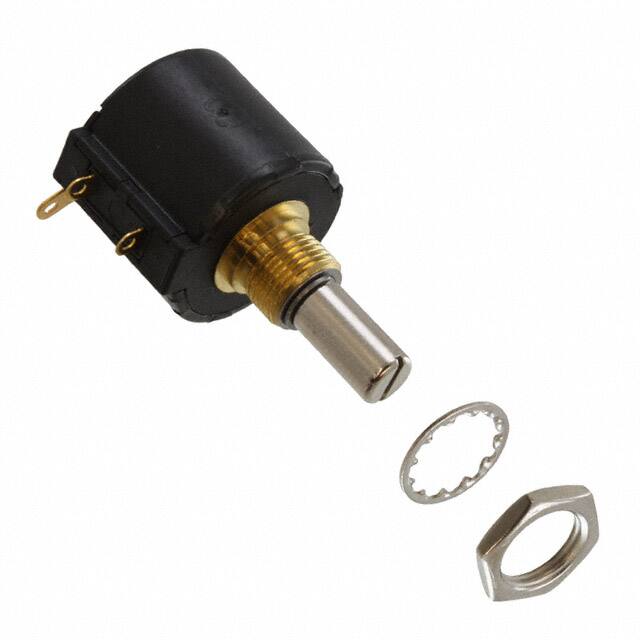

Bourns Inc. 3549S-1AA-101A

Bourns Inc.

Manufacturer No:

3549S-1AA-101A

Manufacturer:

Bourns Inc.

Cybertant No:

Package:

Datasheet:

ECAD Model:

Description:

PRECISION POT-7/8" 22MM DIA 10T WW

Quantity:

Unit Price: -

Ext Price: -

Delivery:

Payment:

In Stock : 56

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry

Package

Shipping Information

Shopping Manual

Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport

Step1：Prepare product
Step2：Vacuum packaging
Step3：Anti-static bag
Step4：Individual package
Step5：Packaging box
Step6：Barcode shipping label

Cybertant How to Login and Register Online

Cybertant How to Place an Order

Cybertant How to Request for Quote

Cybertant How to Use Manufacturers Page

Cybertant How to Use My Account

Bourns Inc. 3549S-1AA-101A information

Specifications

Documents & Media

Product Comparison

Related Products

Bourns Inc. 3549S-1AA-101A technical specifications, attributes, parameters and parts with similar specifications to Bourns Inc. 3549S-1AA-101A.

Parameter	Value
Factory Lead Time	12 Weeks
Mount	Panel
Mounting Type	Panel Mount
Terminal Shape	LUG
Resistive Material	Wirewound
Packaging	Tray
Published	2007
Series	3549
Tolerance	u00b13%
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
Termination	Solder
Temperature Coefficient	u00b150ppm/u00b0C
Type	Potentiometer
Resistance	100Ohm
Terminal Finish	Gold (Au)
Max Operating Temperature	125u00b0C
Min Operating Temperature	-55u00b0C
Power Rating	2W
Max Power Dissipation	2W
Depth	22.48mm
Base Part Number	3549S
Military Standard	Not
Termination Style	Solder Lug
Rated Power Dissipation (P)	2W
Actuator Type	Slotted
Insulation Resistance	1GOhm
Rated Temperature	70u00b0C
Bushing Thread	3/8-32
Adjustment Type	User Defined
Number of Turns	10
Taper	Linear
Hole Diameter	9.525 mm
Actuator Orientation	HORIZONTAL
Linearity	0.2 %
Built in Switch	None
Actuator Diameter	0.250 (6.35mm)
Rotation	3600u00b0
Ganging Number	1
Size - Body	Round - 0.885Dia x 0.780 H 22.48mmx19.81mm
Number of Gangs	1
Height	27.5mm
Length	40.43mm
Actuator Length	0.813 20.64mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
