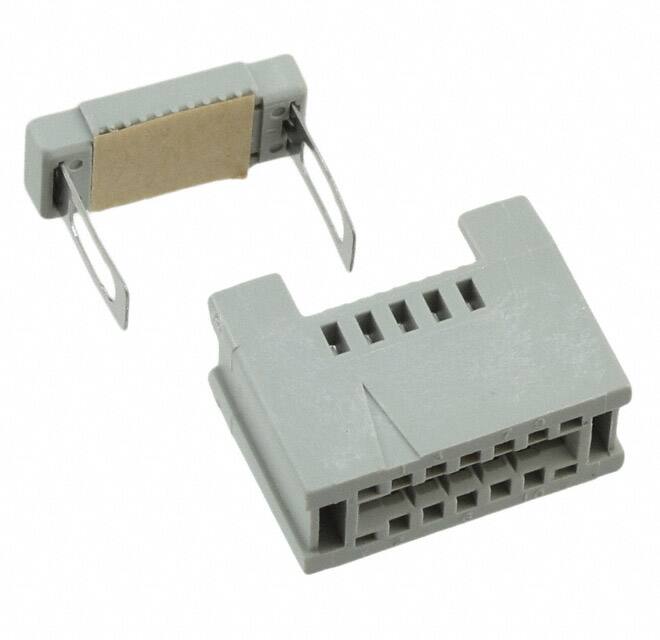

3M 3358-0001

3M

Manufacturer No:

3358-0001

Manufacturer:

Cybertant No:

Package:

Datasheet:

ECAD Model:

Description:

CONN EDGE DUAL FMALE 10POS 0.100

Quantity:

Unit Price: -

Ext Price: -

Delivery:

Payment:

In Stock : 0

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry

Package

Shipping Information

Shopping Manual

Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport

Step1：Prepare product
Step2：Vacuum packaging
Step3：Anti-static bag
Step4：Individual package
Step5：Packaging box
Step6：Barcode shipping label

Cybertant How to Login and Register Online

Cybertant How to Place an Order

Cybertant How to Request for Quote

Cybertant How to Use Manufacturers Page

Cybertant How to Use My Account

3M 3358-0001 information

Specifications

Documents & Media

Product Comparison

Related Products

3M 3358-0001 technical specifications, attributes, parameters and parts with similar specifications to 3M 3358-0001.

Parameter	Value
Factory Lead Time	5 Weeks
Mount	Flanges, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene
Weight	1.043262kg
Material - Insulation	Polybutylene Terephthalate (PBT), Glass Filled
Contact Materials	Copper Alloy
Operating Temperature	-55u00b0C~105u00b0C
Packaging	Bulk
Published	2005
Series	3000
Pbfree Code	yes
Part Status	Last Time Buy
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	IDC
ECCN Code	EAR99
Connector Type	CARD EDGE CONNECTOR
Number of Positions	10
Color	Gray
Number of Rows	2
Gender	Female
Additional Feature	METAL COVER CLIPS
Pitch	0.100 2.54mm
Total Number of Contacts	10
Orientation	Right Angle
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Body Length or Diameter	0.969 inch
Lead Pitch	2.54mm
Body Breadth	0.441 inch
Housing Color	Grey
Body Depth	0.709 inch
Rated Current (Signal)	1A
Contact Style	BELLOWED TYPE
Card Type	Non Specified - Dual Edge
Read Out	Dual
Number of Positions/Bay/Row	5
Max Current Rating	1A
Contact Pattern	RECTANGULAR
Contact Design	PREASSEM CONN
Contact Finish Thickness	30.0u03bcin 0.76u03bcm
Plating Thickness	30u03bcin
Card Thickness	0.054 ~ 0.070 1.37mm ~ 1.78mm
REACH SVHC	Unknown
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free
