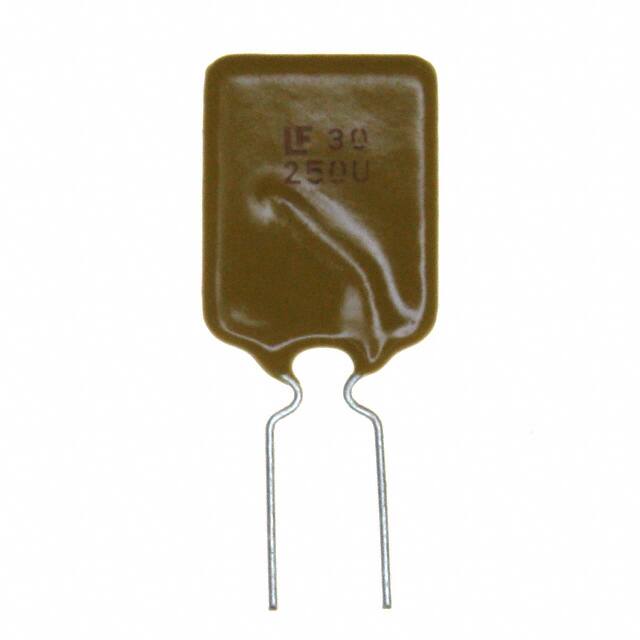

Littelfuse Inc. 30R250UU

Littelfuse Inc.

Manufacturer No:

30R250UU

Manufacturer:

Littelfuse Inc.

Cybertant No:

Package:

Datasheet:

ECAD Model:

Description:

PTC RESET FUSE 30V 2.5A RADIAL

Quantity:

Unit Price: -

Ext Price: -

Delivery:

Payment:

In Stock : 5000

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry

Package

Shipping Information

Shopping Manual

Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport

Step1：Prepare product
Step2：Vacuum packaging
Step3：Anti-static bag
Step4：Individual package
Step5：Packaging box
Step6：Barcode shipping label

Cybertant How to Login and Register Online

Cybertant How to Place an Order

Cybertant How to Request for Quote

Cybertant How to Use Manufacturers Page

Cybertant How to Use My Account

Littelfuse Inc. 30R250UU information

Specifications

Documents & Media

Product Comparison

Related Products

Littelfuse Inc. 30R250UU technical specifications, attributes, parameters and parts with similar specifications to Littelfuse Inc. 30R250UU.

Parameter	Value
Factory Lead Time	12 Weeks
Mounting Type	Through Hole
Package / Case	Radial, Disc
Surface Mount	NO
Terminal Shape	WIRE
Operating Temperature	-40u00b0C~85u00b0C
Packaging	Bulk
Published	2008
Series	POLY-FUSEu00ae, 30R
Size / Dimension	0.449Lx0.118W 11.40mmx3.00mm
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	Radial
ECCN Code	EAR99
Type	Polymeric
Resistance	70mOhm
Terminal Finish	Matte Tin (Sn)
Additional Feature	FLAME PROOF, MINIMUM RESISTANCE IS 0.02 OHMS
HTS Code	8533.40.80.70
Voltage - Rated DC	30V
Current Rating	2.5A
Approval Agency	cURus, TUV
Lead Pitch	5.1mm
Operating Supply Voltage	30V
Working Voltage	30V
Lead Spacing	0.118 3.00mm
Max Current Rating	40A
Power Dissipation	1.2W
Max Voltage Rating (DC)	30V
Hold Current	2.5A
Thermistor Application	OVERCURRENT PROTECTION
Time to Trip	10.3s
Resistance - Initial (Ri) (Min)	20mOhm
Resistance - Post Trip (R1) (Max)	70mOhm
Trip Current	5A
Height	18.3mm
Height Seated (Max)	0.720 18.30mm
Thickness	3.05mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
