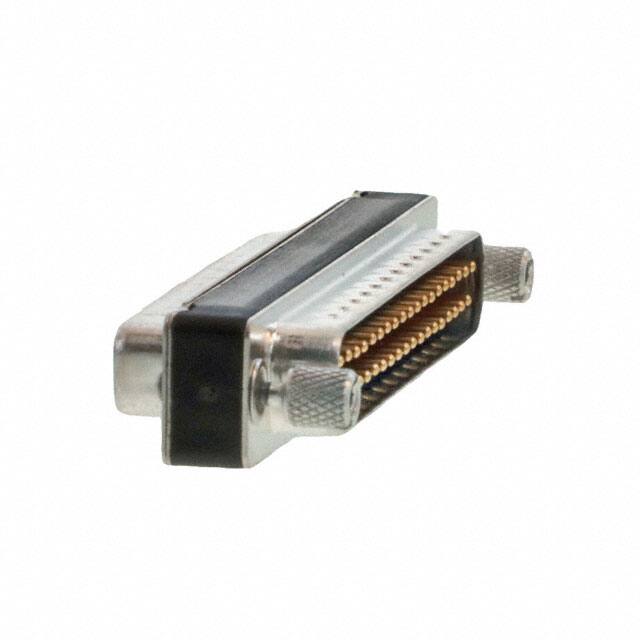

Conec 243A10080X
Conec 243A10080X thumbnail
Conec 243A10080X thumbnail
FREE SAMPLE

Conec 243A10080X

Conec

Manufacturer No:

243A10080X

Manufacturer:

Conec

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

D-SUB filter D-SUB socket 37-pin - D-SUB plug 37-pin Conec 243A10080X 1 pc(s)

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 0

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Conec 243A10080X information

Specifications
Documents & Media
Product Comparison
Related Products
Conec 243A10080X technical specifications, attributes, parameters and parts with similar specifications to Conec 243A10080X.
ParameterValue
Factory Lead Time 12 Weeks
Contact Plating Gold
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Number of Pins 37
Housing Material Polyester
Shell Material, Finish Steel, Tin Plated
Contact Finish Mating AU ON NI
Contact Materials COPPER ALLOY
Operating Temperature -25u00b0C~105u00b0C
Published 2012
Series 243A
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Rows 2
Additional Feature ADAPTER
Filter Feature YES
Total Number of Contacts 37
Orientation Straight
Ingress Protection IP20
Current Rating 7.5A
Shell Finish TIN OVER NICKEL
Reference Standard UL
Reliability COMMERCIAL
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Body Breadth 0.509 inch
Housing Color Black
Rated Current (Signal) 5A
Contact Style RND PIN-SKT
Body/Shell Style PLUG/RECEPTACLE
Connector Style Connector Saver
Number of Ports 1
Contact Finish Termination TIN OVER NICKEL
Contact Pattern STAGGERED
Insertion Force-Max 3.336 N
Includes 3 pcs - 1 Connector, 2 Jack Screws
Convert From (Adapter End) D-Sub, 37 Pin Male
Convert To (Adapter End) D-Sub, 37 Pin Female
Max Supply Voltage (DC) 100V
Gender Type A Male
Gender Type B Female
Features Filter
Length 69.7mm
Contact Finish Thickness 8.00u03bcin 0.203u03bcm
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
