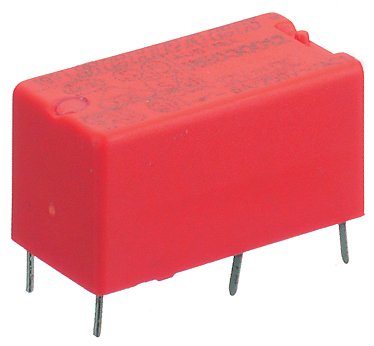

TE Connectivity 2-1393217-4

TE Connectivity

Manufacturer No:

2-1393217-4

Manufacturer:

TE Connectivity

Cybertant No:

Package:

Datasheet:

ECAD Model:

Description:

Electromechanical Relay 24VDC 2.88KOhm 15A SPST-NO (20x10x10.6)mm THT Miniature Relay

Quantity:

Unit Price: -

Ext Price: -

Delivery:

Payment:

In Stock : 0

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry

Package

Shipping Information

Shopping Manual

Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport

Step1：Prepare product
Step2：Vacuum packaging
Step3：Anti-static bag
Step4：Individual package
Step5：Packaging box
Step6：Barcode shipping label

Cybertant How to Login and Register Online

Cybertant How to Place an Order

Cybertant How to Request for Quote

Cybertant How to Use Manufacturers Page

Cybertant How to Use My Account

TE Connectivity 2-1393217-4 information

Specifications

Documents & Media

Product Comparison

Related Products

TE Connectivity 2-1393217-4 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity 2-1393217-4.

Parameter	Value
Factory Lead Time	14 Weeks, 1 Day
Lifecycle Status	Production (Last Updated: 1 week ago)
Contact Plating	Gold
Mount	Through Hole
Mounting Type	PCB Mount
Surface Mount	NO
Mounting Feature	THROUGH HOLE-STRAIGHT MOUNT
Number of Pins	4
CoilResistance	2.88 ku03a9
Contact Materials	Gold, Silver
ElectricalLife	100000 Cycle(s)
Ihs Manufacturer	TE CONNECTIVITY LTD
Manufacturer	TE Connectivity
Manufacturer Lifecycle Status	ACTIVE (Last Updated: 1 week ago)
Manufacturer Part Number	2-1393217-4
Minimum Dropout Voltage	2.4 Vdc
Mounting	Through Hole
Operating Temperature-Max	70 u00b0C
Operating Temperature-Min	-40 u00b0C
Part Life Cycle Code	Active
Relay Construction	Non-Latching
Risk Rank	1
Rohs Code	Yes
Standards Met	cULus, VDE
Voltage Rating (AC)	400 V
Operating Temperature	-40 to 70 u00b0C
Packaging	Carton
Series	RE
Pbfree Code	Yes
Termination	PC Pin
ECCN Code	EAR99
Max Operating Temperature	70 u00b0C
Min Operating Temperature	-40 u00b0C
Applications	I/O Modules, PLCs, Temperature Controls
Packing Method	BULK
Depth	10 mm
Reach Compliance Code	compliant
Current Rating	6 A
Reference Standard	UL; VDE
Body Length or Diameter	20 mm
Number of Contacts	1
Body Breadth	10 mm
Physical Dimension	20mm x 10mm x 10.6mm
Brand Name	CII
Sealing	RT3
Max Voltage Rating (AC)	400 V
Termination Type	SOLDER
Max Current Rating	15 A
Number of Poles	1
Throw Configuration	SPST
Contact Current Rating	6 A
Relay Type	POWER/SIGNAL RELAY
Terminal Type	PCB Pin
Contact Current(AC)-Max	6 A
Operate Time	10 ms
Coil Voltage	24V dc
Coil Type	Non-Latching
Coil Current	8.33 mA
Release Time	2 ms
Coil Power	200 mW
Contact Voltage(AC)-Max	400 V
Contact/Output Supply Type	AC
Relay Action	MOMENTARY
Coil Voltage (DC)	24 V
Coil/Input Supply Type	DC
Ambient Temperature Range High	70 u00b0C
Switching Current	6A
Relay Function	SPST
Contact Arrangement	SPST-NO
Coil Voltage(DC)-Max	24 V
Contact Configuration	SPST
Coil Current(DC)-Max	0.008 A
Coil Operate Voltage(DC)	16.8 V
Coil Release Voltage(DC)	2.4 V
Switching Capacity	1.5 kW
Product Length	20 mm
Height	10.8 mm
Length	20 mm
Width	20 mm
Body Height	10.6 mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Lead Free	Lead Free
Ratings	IP67
