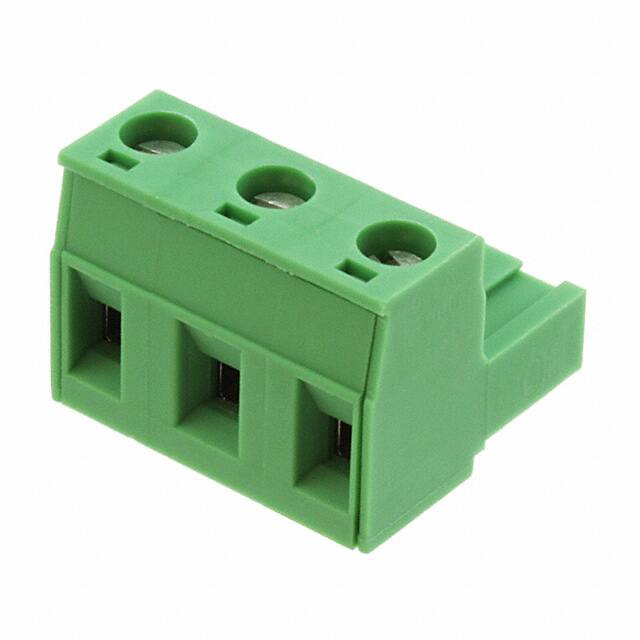

Phoenix Contact 1767012
Phoenix Contact 1767012 thumbnail
Phoenix Contact 1767012 thumbnail
FREE SAMPLE

Phoenix Contact 1767012

Phoenix Contact

Manufacturer No:

1767012

Manufacturer:

Phoenix Contact

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

Conn Terminal Blocks F 3 POS 7.62mm Screw RA Cable Mount 12A

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 998

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Phoenix Contact 1767012 information

Specifications
Documents & Media
Product Comparison
Related Products
Phoenix Contact 1767012 technical specifications, attributes, parameters and parts with similar specifications to Phoenix Contact 1767012.
ParameterValue
Factory Lead Time 7 Weeks
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 166.000009g
Contact Materials Copper
Current-IEC 12A
Current-UL 15A
Voltage Rated 400V
Voltage-IEC 1kV
Packaging Bulk
Published 2011
Series COMBICON GMSTB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Screw, Socket
Type Plug, Female Sockets
Number of Positions 3
Color Green
Number of Rows 1
Gender Female
Pitch 0.300 7.62mm
Orientation Right Angle
Depth 18.2mm
Insulation Height 0.591 15.00mm
Current Rating 12A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 3
Contact Gender Female
Housing Color Green
Voltage 300V
Number of Circuits 3
Max Supply Voltage 400V
Max Current Rating 12A
Number of Levels 1
Current 10A
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 24 AWG
Number of Poles 3
Contact Mating Finish Tin
Wire Gauge or Range - AWG 12-30 AWG
Positions Per Level 3
Plug Wire Entry 180u00b0
Wire Gauge or Range - mmu00b2 0.2-2.5mm2
Wire Strip Length 7mm
Number of Positions Per Level 3
Screw Size M3
Features Retention Latches (Non-Wire Side)
Height 18.2mm
Length 20.86mm
Width 20.86mm
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Lead Free
