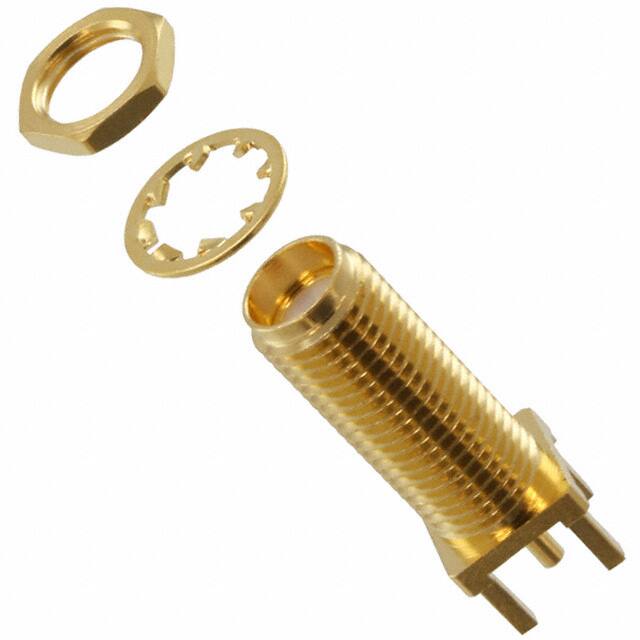

Amphenol RF 132291

Amphenol RF

Manufacturer No:

132291

Manufacturer:

Amphenol RF

Cybertant No:

Package:

Datasheet:

ECAD Model:

Description:

CONN SMA JACK STR 50 OHM PCB

Quantity:

Unit Price: -

Ext Price: -

Delivery:

Payment:

In Stock : 1182

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry

Package

Shipping Information

Shopping Manual

Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport

Step1：Prepare product
Step2：Vacuum packaging
Step3：Anti-static bag
Step4：Individual package
Step5：Packaging box
Step6：Barcode shipping label

Cybertant How to Login and Register Online

Cybertant How to Place an Order

Cybertant How to Request for Quote

Cybertant How to Use Manufacturers Page

Cybertant How to Use My Account

Amphenol RF 132291 information

Specifications

Documents & Media

Product Comparison

Related Products

Amphenol RF 132291 technical specifications, attributes, parameters and parts with similar specifications to Amphenol RF 132291.

Parameter	Value
Factory Lead Time	9 Weeks
Contact Plating	Gold
Mount	Bulkhead, Panel, Through Hole
Mounting Type	Panel Mount, Through Hole
Package / Case	SMA
Mounting Feature	Bulkhead - Front Side Nut
Dielectric Material	Polytetrafluoroethylene (PTFE)
Weight	4.93001g
Body Material	Brass
Center Contact Plating	Gold
Center Contact Material	Beryllium Copper
Contact Materials	Copper
Frequency(Max)	18GHz
Insulation Materials	Polytetrafluoroethylene
Operating Temperature	-65u00b0C~165u00b0C
Packaging	Bulk
Published	2003
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Jack, Female Socket
Max Operating Temperature	165u00b0C
Min Operating Temperature	-65u00b0C
Fastening Type	Threaded
Orientation	Straight
Frequency	18GHz
Number of Contacts	1
Housing Color	Gold
Impedance	50Ohm
Connector Style	SMA
Number of Ports	1
Body Plating	Gold
Mating Cycles	500
Contact Termination	Solder
Includes	3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Body Finish	Gold
Shield Termination	Solder
Height	16.4mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
