Home / All Products / Aluminum Electrolytic Capacitors / Rubycon 10TZV220M6.3X8

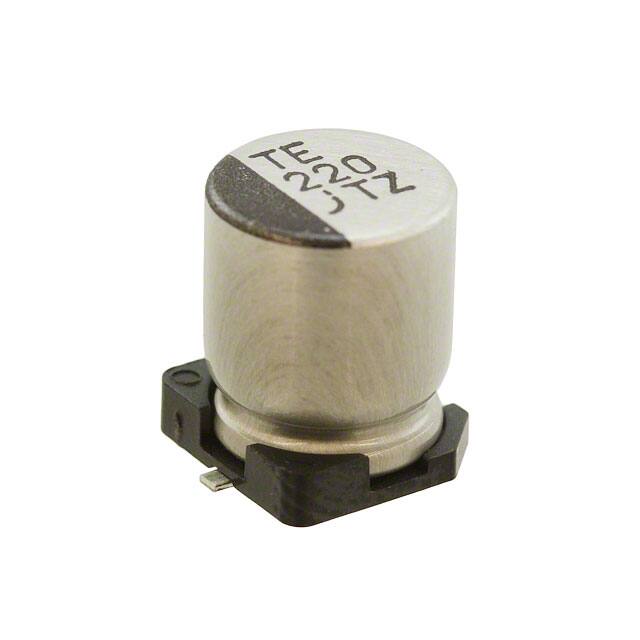

Rubycon 10TZV220M6.3X8
Rubycon 10TZV220M6.3X8 thumbnail
Rubycon 10TZV220M6.3X8 thumbnail
FREE SAMPLE

Rubycon 10TZV220M6.3X8

Rubycon

Manufacturer No:

10TZV220M6.3X8

Manufacturer:

Rubycon

Cybertant No:

-

Package:

-

Datasheet:

Datasheet

ECAD Model:

-

Description:

RUBYCON 10TZV220M6.3X8SMD Aluminium Electrolytic Capacitor, TZV Series, 220 F, 10 V, Radial Can - SMD, 6.3 mm

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 900

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Rubycon 10TZV220M6.3X8 information

Specifications
Documents & Media
Product Comparison
Related Products
Rubycon 10TZV220M6.3X8 technical specifications, attributes, parameters and parts with similar specifications to Rubycon 10TZV220M6.3X8.
ParameterValue
Factory Lead Time 17 Weeks
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Terminal Shape WRAPAROUND
Number of Pins 2
Dielectric Material Aluminium
Surface Mount Land Size 0.260Lx0.260W 6.60mmx6.60mm
Lifetime @ Temp. 2000 Hrs @ 105u00b0C
Operating Temperature -55u00b0C~105u00b0C
Packaging Cut Tape (CT)
Series TZV
Size / Dimension 0.248Dia 6.30mm
Tolerance u00b120%
JESD-609 Code e6
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Terminal Finish Tin/Bismuth (Sn/Bi)
Applications Automotive
Capacitance 220u03bcF
Voltage - Rated DC 10V
Packing Method TR
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Voltage 10V
Leakage Current 3u03bcA
Ripple Current 300mA
Polarization Polar
Life (Hours) 2000 hours
Tan Delta 0.19
Impedance 340mOhm
Ripple Current @ Low Frequency 180mA @ 120Hz
Ripple Current @ High Frequency 300mA @ 100kHz
Ripple Current (AC) 300mA
Diameter 6.3mm
Height 8mm
Height Seated (Max) 0.315 8.00mm
Width 6.6mm
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
The three parts on the right have similar specifications to Rubycon 10TZV220M6.3X8.
