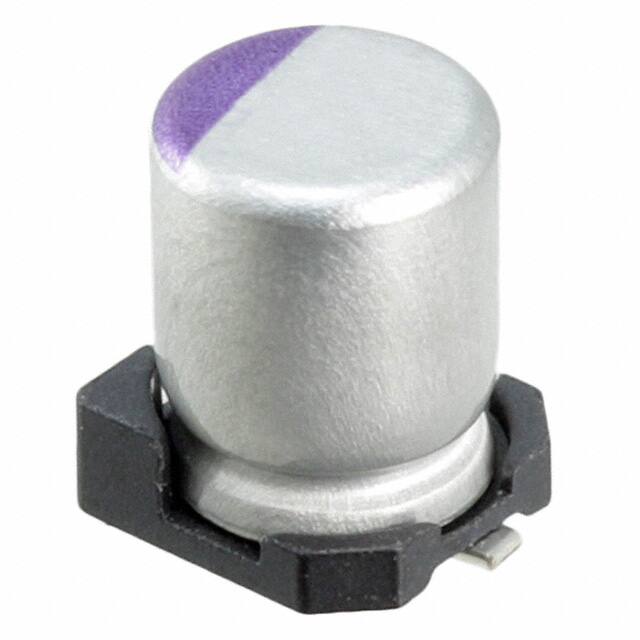

Panasonic Electronic Components 10SVP4R7M
Panasonic Electronic Components 10SVP4R7M thumbnail
Panasonic Electronic Components 10SVP4R7M thumbnail
FREE SAMPLE

Panasonic Electronic Components 10SVP4R7M

Panasonic Electronic Components

Manufacturer No:

10SVP4R7M

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

CAP ALUM POLY 4.7UF 20% 10V SMD

Quantity:

Unit Price: 1.271414

Ext Price: $1.27

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 20000

Minimum: 1 Multiples: 1

Qty

Unit Price

Ext Price

  • 1

    1.271414

    $1.27

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Panasonic Electronic Components 10SVP4R7M information

Specifications
Documents & Media
Product Comparison
Related Products
Panasonic Electronic Components 10SVP4R7M technical specifications, attributes, parameters and parts with similar specifications to Panasonic Electronic Components 10SVP4R7M.
ParameterValue
Factory Lead Time 10 Weeks
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Terminal Shape FLAT
Number of Pins 5
Surface Mount Land Size 0.169Lx0.169W 4.30mmx4.30mm
Lifetime @ Temp. 2000 Hrs @ 105u00b0C
Operating Temperature -55u00b0C~105u00b0C
Packaging Cut Tape (CT)
Published 2005
Series OS-CONu2122, SVP
Size / Dimension 0.157Dia 4.00mm
Tolerance u00b120%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Polymer
Applications General Purpose
Capacitance 4.7u03bcF
Voltage - Rated DC 10V
Packing Method TR
ESR (Equivalent Series Resistance) 240mOhm
Polarity Polar
Size Code 1717
Voltage 10V
Leakage Current 23.5u03bcA
Ripple Current 670mA
Life (Hours) 2000 hours
Tan Delta 0.08
Ripple Current @ Low Frequency 33.5mA @ 120Hz
Ripple Current @ High Frequency 670mA @ 100kHz
Dissipation Factor 8 %
Ripple Current (AC) 670mA
Diameter 4mm
Height 5.4mm
Height Seated (Max) 0.217 5.50mm
Width 4.3mm
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free

No documents or media available for this product.

The three parts on the right have similar specifications to Panasonic Electronic Components 10SVP4R7M.
