Home / All Products / PTC Resettable Fuses / Littelfuse Inc. 0603L010YR

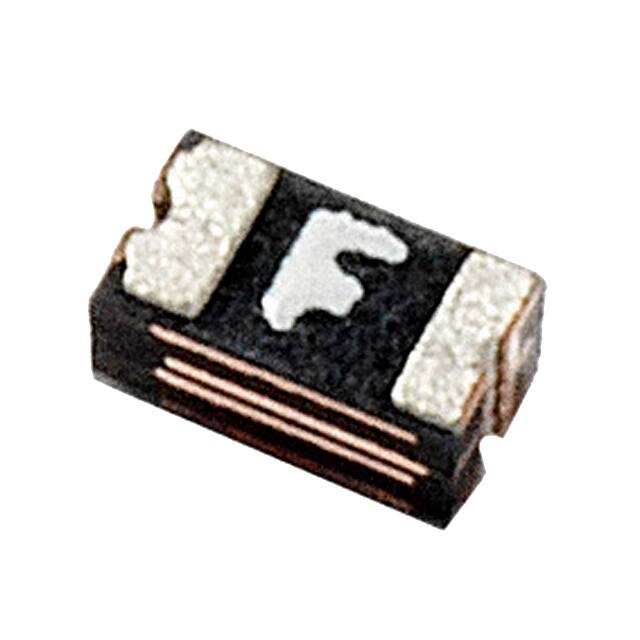

Littelfuse Inc. 0603L010YR

Littelfuse Inc.

Manufacturer No:

0603L010YR

Manufacturer:

Littelfuse Inc.

Cybertant No:

Package:

Datasheet:

ECAD Model:

Description:

PTC Resettable Fuse 0.1A(hold) 0.3A(trip) 15VDC 40A 0.5W 1s 0.9Ohm SMD Solder Pad 0603 T/R

Quantity:

Unit Price: -

Ext Price: -

Delivery:

Payment:

In Stock : 4138

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry

Package

Shipping Information

Shopping Manual

Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport

Step1：Prepare product
Step2：Vacuum packaging
Step3：Anti-static bag
Step4：Individual package
Step5：Packaging box
Step6：Barcode shipping label

Cybertant How to Login and Register Online

Cybertant How to Place an Order

Cybertant How to Request for Quote

Cybertant How to Use Manufacturers Page

Cybertant How to Use My Account

Littelfuse Inc. 0603L010YR information

Specifications

Documents & Media

Product Comparison

Related Products

Littelfuse Inc. 0603L010YR technical specifications, attributes, parameters and parts with similar specifications to Littelfuse Inc. 0603L010YR.

Parameter	Value
Factory Lead Time	12 Weeks
Mounting Type	Surface Mount
Package / Case	0603 (1608 Metric), Concave
Surface Mount	YES
Terminal Shape	WRAPAROUND
Terminal Material	Copper
Voltage Rated	15V
Operating Temperature	-40u00b0C~85u00b0C
Packaging	Tape & Reel (TR)
Published	2010
Series	POLY-FUSEu00ae, 0603L
Size / Dimension	0.063Lx0.032W 1.60mmx0.80mm
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	SMD/SMT
ECCN Code	EAR99
Type	Polymeric
Resistance	6Ohm
Terminal Finish	Matte Tin (Sn)
Additional Feature	MINIMUM RESISTANCE IS 0.9 OHMS
HTS Code	8533.40.80.70
Voltage - Rated DC	15V
Packing Method	TR, 7 INCH
Max Power Dissipation	500mW
Current Rating	40A
Case Code (Metric)	1608
Approval Agency	cURus, TUV
Case Code (Imperial)	0603
Operating Supply Voltage	15V
Working Voltage	15V
Max Current Rating	40A
Power Dissipation	500mW
Terminal Placement	DUAL ENDED
Max Voltage Rating (DC)	15V
Hold Current	100mA
Current - Hold (Ih) (Max)	100mA
Thermistor Application	OVERCURRENT PROTECTION
Time to Trip	1s
Resistance - Initial (Ri) (Min)	900mOhm
Resistance - Post Trip (R1) (Max)	6Ohm
Trip Current	300mA
Ambient Temperature Range High	85u00b0C
Height	750u03bcm
Thickness (Max)	0.030 0.75mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
